1 Announcements

  1. I will grade your projects over spring break
  2. Please complete your peer reviews on Teammates by midnight on Tuesday, 2/27
  3. I will record the week 9 lecture video on Thursday
  4. Enjoy your spring breaks!

2 10-Minute Recap

We will focus on 3 topics from chapter 10 of McKinney:

  1. GroupBy Mechanics: We will use the .groupby() method to perform “split-apply-combine” calculations in pandas, which let us aggregate data by one of more columns or indexes.
  2. Data Aggregation: We will combine optimized methods, like .count(), .sum(), .mean(), etc., with .groupby() to quickly aggregate data. We will combine the .agg() or .aggregate() method with .groupby() when we want to apply more than one aggregation function.
  3. Pivot Tables: We can use the .pivot_table() method to aggregate data with a syntax similar to Excel’s pivot tables. We can almost always get the same output with the .groupby(), .agg(), and .unstack() methods.

3 Practice

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pandas_datareader as pdr
import yfinance as yf
%precision 4
pd.options.display.float_format = '{:.4f}'.format
%config InlineBackend.figure_format = 'retina'

3.1 Replicate the following .pivot_table() output with .groupby()

ind = (
    yf.download(tickers='^GSPC ^DJI ^IXIC ^FTSE ^N225 ^HSI')
    .rename_axis(columns=['Variable', 'Index'])
    .stack()
)
[*********************100%%**********************]  6 of 6 completed
np.allclose(
    ind['Adj Close'],
    ind['Close']
)
True

Here is the .pivot_table() solution. In most cases, the .pivot_table() is easier to interpret because it explicitly selects rows and columns (i.e., the index and columns arguments).

a = (
    ind
    .loc['2015':]
    .reset_index()
    .pivot_table(
        values='Close',
        index=pd.Grouper(key='Date', freq='A'),
        columns='Index',
        aggfunc=['min', 'max']
    )
)

a
min max
Index ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225 ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225
Date
2015-12-31 15666.4404 5874.1001 1867.6100 20556.5996 4506.4902 16795.9609 18312.3906 7104.0000 2130.8201 28442.7500 5218.8599 20868.0293
2016-12-31 15660.1797 5537.0000 1829.0800 18319.5801 4266.8398 14952.0195 19974.6191 7142.7998 2271.7200 24099.6992 5487.4399 19494.5293
2017-12-31 19732.4004 7099.2002 2257.8301 22134.4707 5429.0801 18335.6309 24837.5098 7687.7998 2690.1599 30003.4902 6994.7598 22939.1797
2018-12-31 21792.1992 6584.7002 2351.1001 24585.5293 6192.9199 19155.7402 26828.3906 7877.5000 2930.7500 33154.1211 8109.6899 24270.6191
2019-12-31 22686.2207 6692.7002 2447.8899 25064.3594 6463.5000 19561.9609 28645.2598 7686.6001 3240.0200 30157.4902 9022.3896 24066.1191
2020-12-31 18591.9297 4993.8999 2237.3999 21696.1309 6860.6699 16552.8301 30606.4805 7674.6001 3756.0701 29056.4199 12899.4199 27568.1504
2021-12-31 29982.6191 6407.5000 3700.6499 22744.8594 12609.1602 27013.2500 36488.6289 7420.7002 4793.0601 31084.9395 16057.4404 30670.0996
2022-12-31 28725.5098 6826.2002 3577.0300 14687.0195 10213.2900 24717.5293 36799.6484 7672.3999 4796.5601 24965.5508 15832.7998 29332.1602
2023-12-31 31819.1406 7256.8999 3808.1001 16201.4902 10305.2402 25716.8594 37710.1016 8014.2998 4783.3501 22688.9004 15099.1797 33753.3281
2024-12-31 37266.6719 7446.2998 4688.6802 14961.1797 14510.2998 33288.2891 39131.5312 7728.5000 5096.2700 16790.8008 16091.9199 39910.8203

Here is the .groupby() equivalent!

b = (
    ind
    .loc['2015':]
    .reset_index()
    .groupby([pd.Grouper(key='Date', freq='A'), 'Index'])
    ['Close']
    .agg(['min', 'max'])
    .unstack()
)

b
min max
Index ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225 ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225
Date
2015-12-31 15666.4404 5874.1001 1867.6100 20556.5996 4506.4902 16795.9609 18312.3906 7104.0000 2130.8201 28442.7500 5218.8599 20868.0293
2016-12-31 15660.1797 5537.0000 1829.0800 18319.5801 4266.8398 14952.0195 19974.6191 7142.7998 2271.7200 24099.6992 5487.4399 19494.5293
2017-12-31 19732.4004 7099.2002 2257.8301 22134.4707 5429.0801 18335.6309 24837.5098 7687.7998 2690.1599 30003.4902 6994.7598 22939.1797
2018-12-31 21792.1992 6584.7002 2351.1001 24585.5293 6192.9199 19155.7402 26828.3906 7877.5000 2930.7500 33154.1211 8109.6899 24270.6191
2019-12-31 22686.2207 6692.7002 2447.8899 25064.3594 6463.5000 19561.9609 28645.2598 7686.6001 3240.0200 30157.4902 9022.3896 24066.1191
2020-12-31 18591.9297 4993.8999 2237.3999 21696.1309 6860.6699 16552.8301 30606.4805 7674.6001 3756.0701 29056.4199 12899.4199 27568.1504
2021-12-31 29982.6191 6407.5000 3700.6499 22744.8594 12609.1602 27013.2500 36488.6289 7420.7002 4793.0601 31084.9395 16057.4404 30670.0996
2022-12-31 28725.5098 6826.2002 3577.0300 14687.0195 10213.2900 24717.5293 36799.6484 7672.3999 4796.5601 24965.5508 15832.7998 29332.1602
2023-12-31 31819.1406 7256.8999 3808.1001 16201.4902 10305.2402 25716.8594 37710.1016 8014.2998 4783.3501 22688.9004 15099.1797 33753.3281
2024-12-31 37266.6719 7446.2998 4688.6802 14961.1797 14510.2998 33288.2891 39131.5312 7728.5000 5096.2700 16790.8008 16091.9199 39910.8203

The .pivot_table() and .groupby() results have the same values!

np.allclose(a, b)
True

3.2 Calulate the mean and standard deviation of returns by ticker for the MATANA (MSFT, AAPL, TSLA, AMZN, NVDA, and GOOG) stocks

Consider only dates with complete returns data. Try this calculation with wide and long data frames, and confirm your results are the same.

matana = (
    yf.download(tickers='MSFT AAPL TSLA AMZN NVDA GOOG')
    .rename_axis(columns=['Variable', 'Ticker'])
)
[*********************100%%**********************]  6 of 6 completed

We can add the returns columns first, using the pd.MultiIndex trick from a few weeks ago.

_ = pd.MultiIndex.from_product([['Return'], matana['Adj Close'].columns])
matana[_] = (
    matana['Adj Close'] # select adjusted close prices
    .iloc[:-1] # drop the last price to avoid using intraday prices
    .pct_change() # calculate returns
)

We can use .agg() without .pivot_table() or .groupby()! We have wide data, so the tickers will be in the columns.

a = (
    matana
    .dropna()
    ['Return']
    .agg(['mean', 'std'])
)

a
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
mean 0.0011 0.0012 0.0009 0.0010 0.0021 0.0020
std 0.0176 0.0207 0.0172 0.0163 0.0283 0.0358

We need a long data frame to use .pivot_table() and .groupby() methods. Here is the .pivot_table() solution.

b = (
    matana
    .dropna()
    ['Return']
    .stack() # create long data
    .to_frame('Return') # .pivot_table() requires a data frame
    .pivot_table(
        values='Return',
        index='Ticker',
        aggfunc=['mean', 'std']
    )
    .transpose() # transpose to put tickers in columns
)

b
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
mean Return 0.0011 0.0012 0.0009 0.0010 0.0021 0.0020
std Return 0.0176 0.0207 0.0172 0.0163 0.0283 0.0358
np.allclose(a, b)
True

Here is the .groupby() solution.

c = (
    matana
    .dropna()
    ['Return']
    .stack() # create long data
    .groupby('Ticker')
    .agg(['mean', 'std'])
    .transpose() # transpose to put tickers in columns
)

b
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
mean Return 0.0011 0.0012 0.0009 0.0010 0.0021 0.0020
std Return 0.0176 0.0207 0.0172 0.0163 0.0283 0.0358
np.allclose(a, c)
True

3.3 Calculate the mean and standard deviation of returns and the maximum of closing prices by ticker for the MATANA stocks

Again, consider only dates with complete returns data. Try this calculation with wide and long data frames, and confirm your results are the same.

a = (
    matana
    .dropna()
    .stack()
    .pivot_table(
        index='Ticker',
        aggfunc={'Close': 'max', 'Return': ['mean', 'std']}
    )
)

a
Variable Close Return
max mean std
Ticker
AAPL 198.1100 0.0011 0.0176
AMZN 186.5705 0.0012 0.0207
GOOG 154.8400 0.0009 0.0172
MSFT 420.5500 0.0010 0.0163
NVDA 790.9200 0.0021 0.0283
TSLA 409.9700 0.0020 0.0358
b = (
    matana
    .dropna()
    .stack()
    .groupby('Ticker')
    .agg({'Close': 'max', 'Return': ['mean', 'std']})
)

b
Variable Close Return
max mean std
Ticker
AAPL 198.1100 0.0011 0.0176
AMZN 186.5705 0.0012 0.0207
GOOG 154.8400 0.0009 0.0172
MSFT 420.5500 0.0010 0.0163
NVDA 790.9200 0.0021 0.0283
TSLA 409.9700 0.0020 0.0358
np.allclose(a, b)
True

We can use the following code to display all index levels for all rows and columns.

with pd.option_context('display.multi_sparse', False):
    display(b)
Variable Close Return Return
max mean std
Ticker
AAPL 198.1100 0.0011 0.0176
AMZN 186.5705 0.0012 0.0207
GOOG 154.8400 0.0009 0.0172
MSFT 420.5500 0.0010 0.0163
NVDA 790.9200 0.0021 0.0283
TSLA 409.9700 0.0020 0.0358

If we prefer to see all index levels all the time, we can set the following setting at the top of our notebook:

pd.options.display.multi_sparse = False

We can also copy our output to our clipboaerd then paste it into Excel if we want to convince ourelves of the column multi index arrangement.

b.to_clipboard()

3.4 Calculate monthly means and volatilities for SPY and GOOG returns

spy_goog = (
    yf.download(tickers='SPY GOOG')
    .rename_axis(columns=['Variable', 'Ticker'])
)

spy_goog
[*********************100%%**********************]  2 of 2 completed
Variable Adj Close Close High Low Open Volume
Ticker GOOG SPY GOOG SPY GOOG SPY GOOG SPY GOOG SPY GOOG SPY
Date
1993-01-29 NaN 24.8407 NaN 43.9375 NaN 43.9688 NaN 43.7500 NaN 43.9688 NaN 1003200
1993-02-01 NaN 25.0173 NaN 44.2500 NaN 44.2500 NaN 43.9688 NaN 43.9688 NaN 480500
1993-02-02 NaN 25.0704 NaN 44.3438 NaN 44.3750 NaN 44.1250 NaN 44.2188 NaN 201300
1993-02-03 NaN 25.3354 NaN 44.8125 NaN 44.8438 NaN 44.3750 NaN 44.4062 NaN 529400
1993-02-04 NaN 25.4414 NaN 45.0000 NaN 45.0938 NaN 44.4688 NaN 44.9688 NaN 531500
... ... ... ... ... ... ... ... ... ... ... ... ...
2024-02-23 145.2900 507.8500 145.2900 507.8500 145.9550 510.1300 144.7900 507.1000 144.9700 509.2700 14508400.0000 61284200
2024-02-26 138.7500 505.9900 138.7500 505.9900 143.8400 508.7500 138.7400 505.8600 143.4500 508.3000 33513000.0000 50386700
2024-02-27 140.1000 506.9300 140.1000 506.9300 140.4900 507.1600 138.5000 504.7500 139.4100 506.7000 22364000.0000 48854500
2024-02-28 137.4300 506.2600 137.4300 506.2600 139.2800 506.8600 136.6400 504.9600 139.1000 505.3300 30628700.0000 56506600
2024-02-29 139.7800 508.0800 139.7800 508.0800 139.9500 509.7400 137.5700 505.3500 138.3500 508.0700 35447100.0000 83824300

7827 rows × 12 columns

spy_goog_m = (
    spy_goog['Adj Close'] # select adj close columns
    .iloc[:-1] # drop last row, which is often intraday or missing
    .pct_change() # calculate daily returns
    .stack() # stack to long
    .to_frame('Return') # name returns column
    .reset_index() # add date and ticker as columns
    .groupby([pd.Grouper(key='Date', freq='M'), 'Ticker']) # group by month and ticker
    .agg(['mean', 'std']) # calulate mean and std
    .rename_axis(columns=['Variable', 'Statistic'])
)

spy_goog_m
Variable Return
Statistic mean std
Date Ticker
1993-02-28 SPY 0.0006 0.0080
1993-03-31 SPY 0.0010 0.0071
1993-04-30 SPY -0.0012 0.0074
1993-05-31 SPY 0.0014 0.0071
1993-06-30 SPY 0.0002 0.0060
... ... ... ...
2023-12-31 SPY 0.0023 0.0060
2024-01-31 GOOG 0.0005 0.0202
SPY 0.0008 0.0070
2024-02-29 GOOG -0.0015 0.0157
SPY 0.0025 0.0079

608 rows × 2 columns

3.5 Plot the monthly means and volatilities from the previous exercise

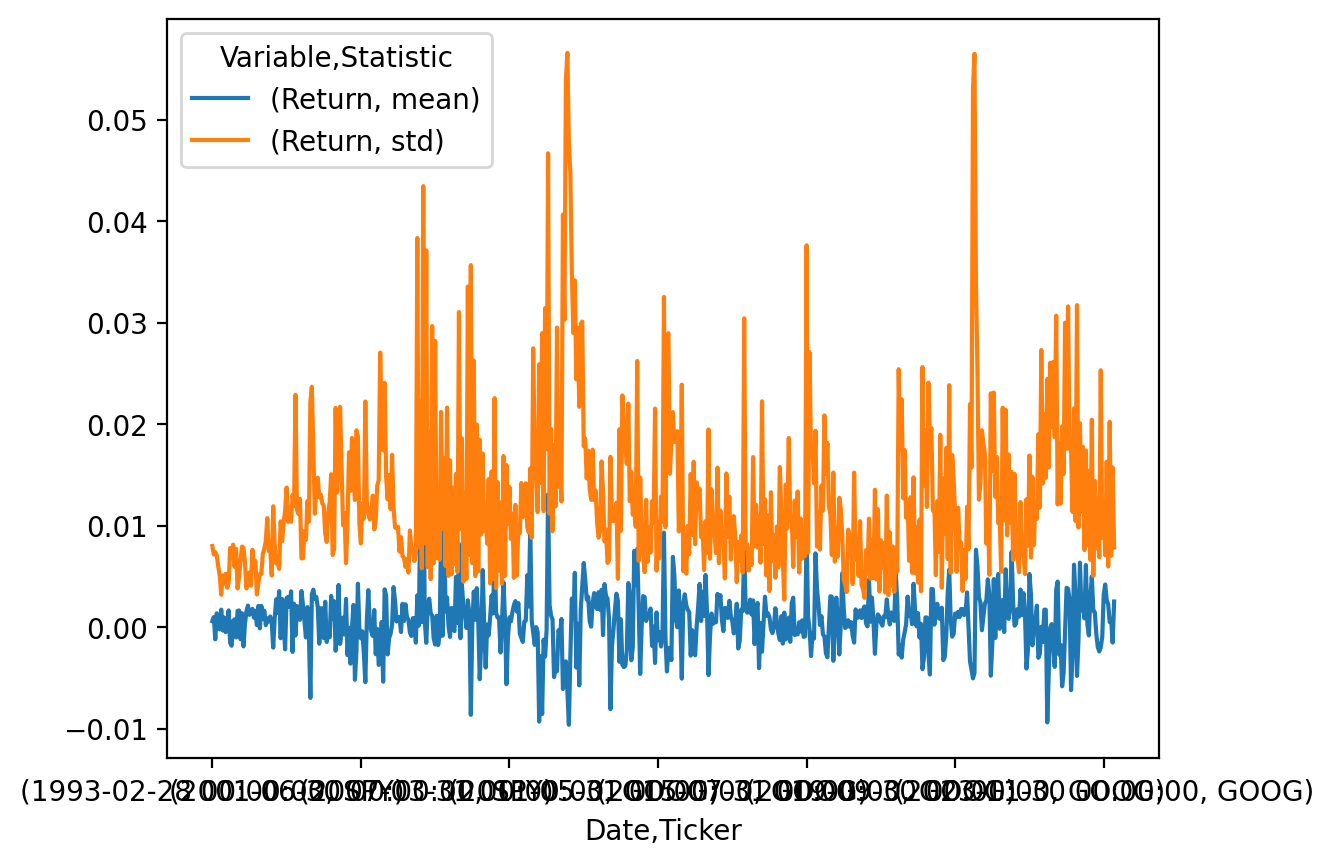

spy_goog_m.plot()

spy_goog_m.unstack().plot()

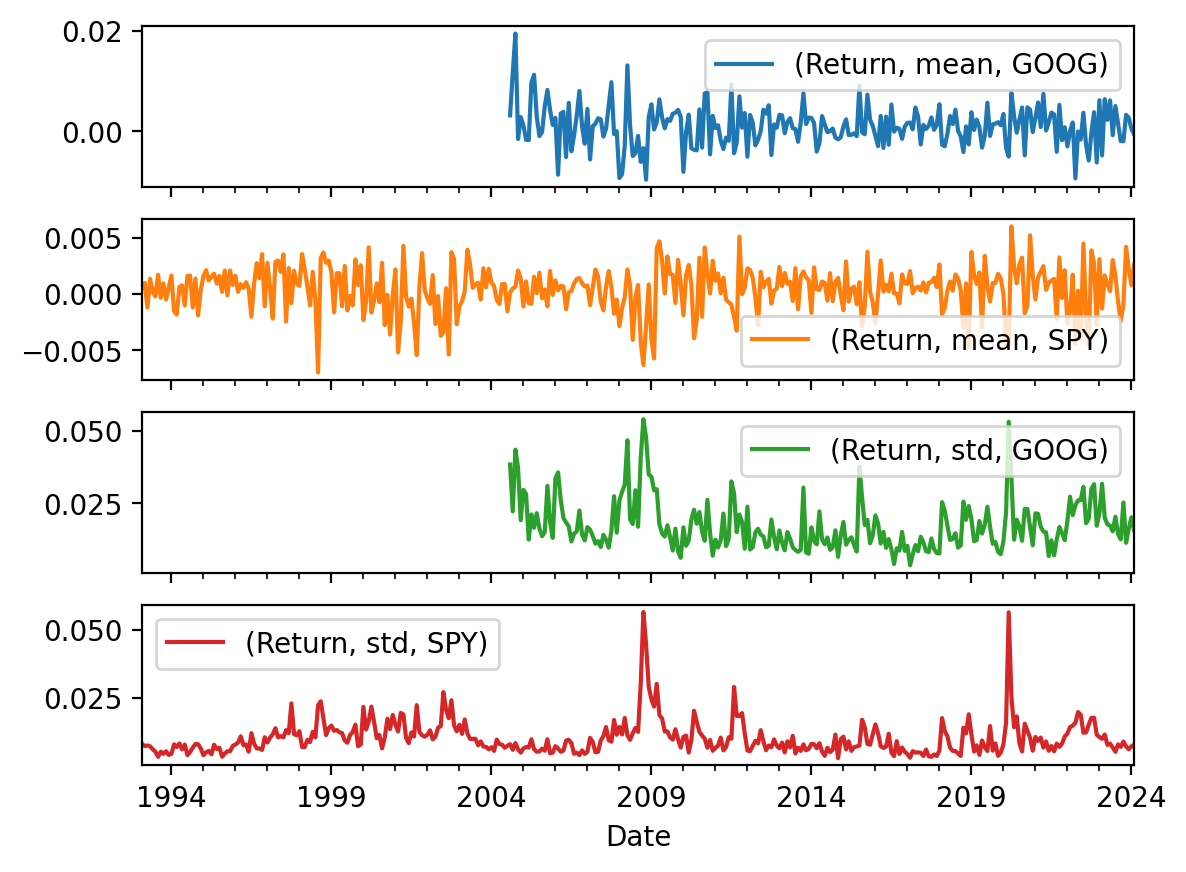

spy_goog_m.unstack().plot(subplots=True)
array([<Axes: xlabel='Date'>, <Axes: xlabel='Date'>,
       <Axes: xlabel='Date'>, <Axes: xlabel='Date'>], dtype=object)

We can make this plot better with the seaborn plotting package!

import seaborn as sns

The seaborn makes excellent multi-panel plots, including plots with statistics. But, it requires very long data frames. A very long data frame has all of the y values in one column and all other useful dimensions as columns instead of indexes!

spy_goog_m.stack().reset_index().head()
Variable Date Ticker Statistic Return
0 1993-02-28 SPY mean 0.0006
1 1993-02-28 SPY std 0.0080
2 1993-03-31 SPY mean 0.0010
3 1993-03-31 SPY std 0.0071
4 1993-04-30 SPY mean -0.0012

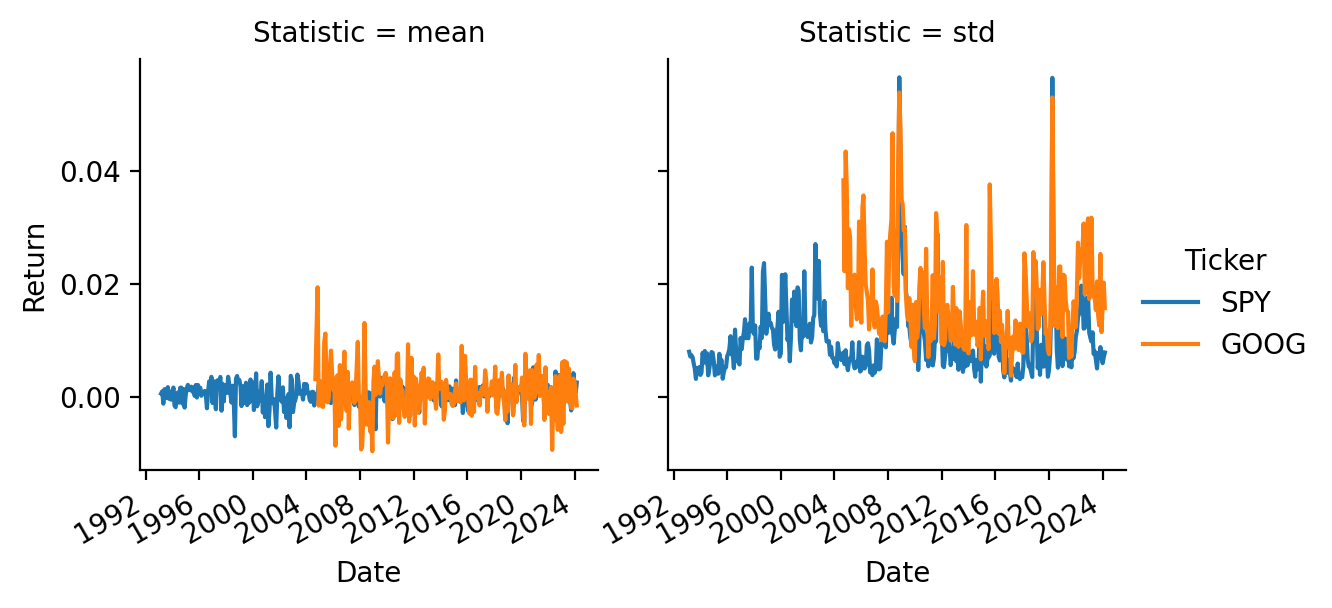

sns.relplot(
    data=spy_goog_m.stack().reset_index(),
    x='Date',
    y='Return',
    hue='Ticker',
    col='Statistic',
    height=3,
    kind='line',
    alpha=0.75
)

plt.gcf().autofmt_xdate()
plt.suptitle('Monthly Mean and Volatility of Daily Returns', y=1.05)
plt.show()

3.6 Assign the Dow Jones stocks to five portfolios based on their monthly volatility

wiki = pd.read_html('https://en.wikipedia.org/wiki/Dow_Jones_Industrial_Average')
wiki[1]['Symbol'].to_list()
['MMM',
 'AXP',
 'AMGN',
 'AMZN',
 'AAPL',
 'BA',
 'CAT',
 'CVX',
 'CSCO',
 'KO',
 'DIS',
 'DOW',
 'GS',
 'HD',
 'HON',
 'IBM',
 'INTC',
 'JNJ',
 'JPM',
 'MCD',
 'MRK',
 'MSFT',
 'NKE',
 'PG',
 'CRM',
 'TRV',
 'UNH',
 'VZ',
 'V',
 'WMT']
djia = (
    yf.download(tickers=wiki[1]['Symbol'].to_list())
    .rename_axis(columns=['Variable', 'Ticker'])
)

djia
[*********************100%%**********************]  30 of 30 completed

First, we add daily returns to djia.

_ = pd.MultiIndex.from_product([['Return'], djia['Adj Close']])
djia[_] = djia['Adj Close'].iloc[:-1].pct_change()

Second, we add monthly volatility of daily returns to each day. The .transform() methods lets us add monthly volatility to the original daily data.

_ = pd.MultiIndex.from_product([['Volatility'], djia['Return']])
djia[_] = djia['Return'].groupby(pd.Grouper(freq='M')).transform('std')

Third, we use pd.qcut() to assign stocks to portfolios based on volatility. Here is an example of how to use pd.qcut().

np.arange(10)
array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9])
pd.qcut(
    x=np.arange(10),
    q=2,
    labels=False
)
array([0, 0, 0, 0, 0, 1, 1, 1, 1, 1], dtype=int64)

We use the .apply() with axis=1 to apply pd.qcut to every row in djia['Volatility'] without writing a for loop. We can also pass q=5 and labels=False after we give the pd.qcut function name.

_ = pd.MultiIndex.from_product([['Portfolio'], djia['Volatility']])
djia[_] = djia['Volatility'].iloc[:-1].apply(pd.qcut, q=5, labels=False, axis=1)

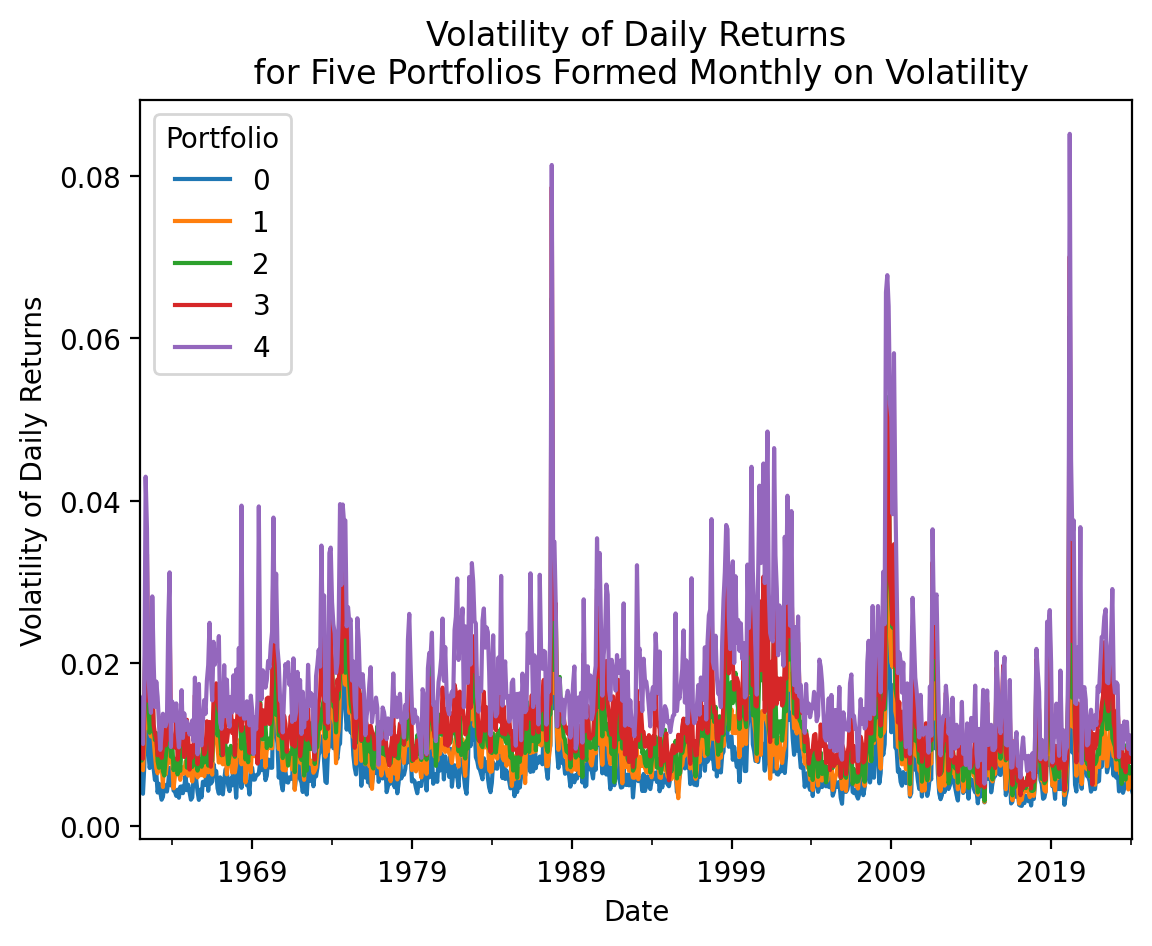

3.7 Plot the time-series volatilities of these five portfolios

djia.stack()
Variable Adj Close Close High Low Open Volume Return Volatility Portfolio
Date Ticker
1962-01-02 BA 0.1909 0.8230 0.8374 0.8230 0.8374 352350.0000 NaN 0.0156 3.0000
CAT 0.4767 1.6042 1.6198 1.5885 1.6042 163200.0000 NaN 0.0121 1.0000
CVX 0.3358 3.2961 3.2961 3.2440 0.0000 105840.0000 NaN 0.0108 0.0000
DIS 0.0582 0.0929 0.0960 0.0929 0.0929 841958.0000 NaN 0.0170 3.0000
HON 1.0740 8.3100 8.3287 8.2726 0.0000 40740.0000 NaN 0.0097 0.0000
... ... ... ... ... ... ... ... ... ... ...
2024-03-01 TRV 220.2450 220.2450 221.0850 219.9000 220.9000 28335.0000 NaN NaN NaN
UNH 482.1600 482.1600 490.0200 481.5365 498.5000 982334.0000 NaN NaN NaN
V 283.9000 283.9000 284.9100 282.7200 283.2000 378060.0000 NaN NaN NaN
VZ 39.9750 39.9750 40.0500 39.7700 39.9900 1042012.0000 NaN NaN NaN
WMT 58.5250 58.5250 58.8090 58.5200 58.8000 1206478.0000 NaN NaN NaN

351383 rows × 9 columns

(
    djia
    .stack()
    .groupby(['Date', 'Portfolio'])
    ['Return']
    .mean()
    .reset_index()
    .dropna()
    .assign(Portfolio=lambda x: x['Portfolio'].astype(int))
    .groupby([pd.Grouper(key='Date', freq='M'), 'Portfolio'])
    .std()
    .rename(columns={'Return': 'Volatility'})
    .unstack()
    ['Volatility']
    .plot()
)

plt.ylabel('Volatility of Daily Returns')
plt.title('Volatility of Daily Returns\n for Five Portfolios Formed Monthly on Volatility')
plt.show()

3.8 Calculate the mean monthly correlation between the Dow Jones stocks

I may build Project 2 on this exercise, so I will leave it blank, for now.

3.9 Is market volatility higher during wars?

Here is some guidance:

  1. Download the daily factor data from Ken French’s website
  2. Calculate daily market returns by summing the market risk premium and risk-free rates (Mkt-RF and RF, respectively)
  3. Calculate the volatility (standard deviation) of daily returns every month by combining pd.Grouper() and .groupby())
  4. Multiply by \(\sqrt{252}\) to annualize these volatilities of daily returns
  5. Plot these annualized volatilities

Is market volatility higher during wars? Consider the following dates:

  1. WWII: December 1941 to September 1945
  2. Korean War: 1950 to 1953
  3. Viet Nam War: 1959 to 1975
  4. Gulf War: 1990 to 1991
  5. War in Afghanistan: 2001 to 2021
pdr.famafrench.get_available_datasets()[:5]
['F-F_Research_Data_Factors',
 'F-F_Research_Data_Factors_weekly',
 'F-F_Research_Data_Factors_daily',
 'F-F_Research_Data_5_Factors_2x3',
 'F-F_Research_Data_5_Factors_2x3_daily']
ff_all = pdr.DataReader(
    name='F-F_Research_Data_Factors_daily',
    data_source='famafrench',
    start='1900'
)
C:\Users\r.herron\AppData\Local\Temp\ipykernel_24320\2526882917.py:1: FutureWarning: The argument 'date_parser' is deprecated and will be removed in a future version. Please use 'date_format' instead, or read your data in as 'object' dtype and then call 'to_datetime'.
  ff_all = pdr.DataReader(
(

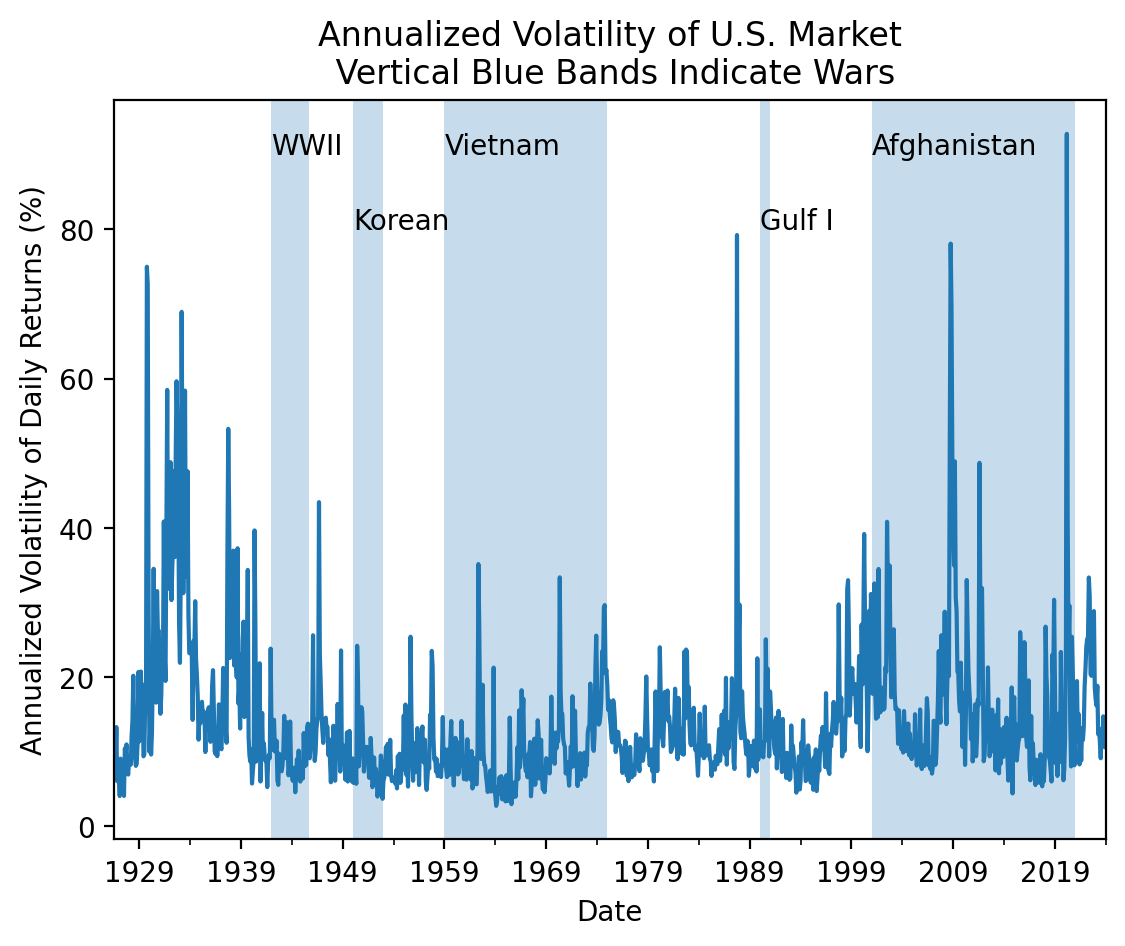

    ff_all[0]
    .assign(Mkt = lambda x: x['Mkt-RF'] + x['RF'])
    ['Mkt']
    .groupby(pd.Grouper(freq='M'))
    .std()
    .mul(np.sqrt(252))
    .plot()
)

# adds vertical bands for U.S. wars
plt.axvspan('1941-12', '1945-09', alpha=0.25)
plt.annotate('WWII', ('1941-12', 90))
plt.axvspan('1950', '1953', alpha=0.25)
plt.annotate('Korean', ('1950', 80))
plt.axvspan('1959', '1975', alpha=0.25)
plt.annotate('Vietnam', ('1959', 90))
plt.axvspan('1990', '1991', alpha=0.25)
plt.annotate('Gulf I', ('1990', 80))
plt.axvspan('2001', '2021', alpha=0.25)
plt.annotate('Afghanistan', ('2001', 90))

plt.ylabel('Annualized Volatility of Daily Returns (%)')
plt.title('Annualized Volatility of U.S. Market\n Vertical Blue Bands Indicate Wars')
plt.show()
