McKinney Chapter 10 - Practice for Section 04

FINA 6333 for Spring 2024

Author

Richard Herron

1 Announcements

  1. I will grade your projects over spring break
  2. Please complete your peer reviews on Teammates by midnight on Tuesday, 2/27
  3. I will record the week 9 lecture video on Thursday
  4. Enjoy your spring breaks!

2 10-Minute Recap

We will focus on 3 topics from chapter 10 of McKinney:

  1. GroupBy Mechanics: We will use the .groupby() method to perform “split-apply-combine” calculations in pandas, which let us aggregate data by one of more columns or indexes.
  2. Data Aggregation: We will combine optimized methods, like .count(), .sum(), .mean(), etc., with .groupby() to quickly aggregate data. We will combine the .agg() or .aggregate() method with .groupby() when we want to apply more than one aggregation function.
  3. Pivot Tables: We can use the .pivot_table() method to aggregate data with a syntax similar to Excel’s pivot tables. We can almost always get the same output with the .groupby(), .agg(), and .unstack() methods.

3 Practice

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pandas_datareader as pdr
import yfinance as yf
%precision 4
pd.options.display.float_format = '{:.4f}'.format
%config InlineBackend.figure_format = 'retina'

3.1 Replicate the following .pivot_table() output with .groupby()

ind = (
    yf.download(tickers='^GSPC ^DJI ^IXIC ^FTSE ^N225 ^HSI')
    .rename_axis(columns=['Variable', 'Index'])
    .stack()
)
[*********************100%%**********************]  6 of 6 completed
np.allclose(
    ind['Adj Close'],
    ind['Close']
)
True
a = (
    ind
    .loc['2015':]
    .reset_index()
    .pivot_table(
        values='Close',
        index=pd.Grouper(key='Date', freq='A'),
        columns='Index',
        aggfunc=['min', 'max']
    )
)

a
min max
Index ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225 ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225
Date
2015-12-31 15666.4404 5874.1001 1867.6100 20556.5996 4506.4902 16795.9609 18312.3906 7104.0000 2130.8201 28442.7500 5218.8599 20868.0293
2016-12-31 15660.1797 5537.0000 1829.0800 18319.5801 4266.8398 14952.0195 19974.6191 7142.7998 2271.7200 24099.6992 5487.4399 19494.5293
2017-12-31 19732.4004 7099.2002 2257.8301 22134.4707 5429.0801 18335.6309 24837.5098 7687.7998 2690.1599 30003.4902 6994.7598 22939.1797
2018-12-31 21792.1992 6584.7002 2351.1001 24585.5293 6192.9199 19155.7402 26828.3906 7877.5000 2930.7500 33154.1211 8109.6899 24270.6191
2019-12-31 22686.2207 6692.7002 2447.8899 25064.3594 6463.5000 19561.9609 28645.2598 7686.6001 3240.0200 30157.4902 9022.3896 24066.1191
2020-12-31 18591.9297 4993.8999 2237.3999 21696.1309 6860.6699 16552.8301 30606.4805 7674.6001 3756.0701 29056.4199 12899.4199 27568.1504
2021-12-31 29982.6191 6407.5000 3700.6499 22744.8594 12609.1602 27013.2500 36488.6289 7420.7002 4793.0601 31084.9395 16057.4404 30670.0996
2022-12-31 28725.5098 6826.2002 3577.0300 14687.0195 10213.2900 24717.5293 36799.6484 7672.3999 4796.5601 24965.5508 15832.7998 29332.1602
2023-12-31 31819.1406 7256.8999 3808.1001 16201.4902 10305.2402 25716.8594 37710.1016 8014.2998 4783.3501 22688.9004 15099.1797 33753.3281
2024-12-31 37266.6719 7446.2998 4688.6802 14961.1797 14510.2998 33288.2891 39131.5312 7728.5000 5137.0801 16790.8008 16274.9414 39910.8203
b = (
    ind
    .loc['2015':]
    .reset_index()
    .groupby([pd.Grouper(key='Date', freq='A'), 'Index'])
    ['Close']
    .agg(['min', 'max'])
    .unstack()
)

b
min max
Index ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225 ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225
Date
2015-12-31 15666.4404 5874.1001 1867.6100 20556.5996 4506.4902 16795.9609 18312.3906 7104.0000 2130.8201 28442.7500 5218.8599 20868.0293
2016-12-31 15660.1797 5537.0000 1829.0800 18319.5801 4266.8398 14952.0195 19974.6191 7142.7998 2271.7200 24099.6992 5487.4399 19494.5293
2017-12-31 19732.4004 7099.2002 2257.8301 22134.4707 5429.0801 18335.6309 24837.5098 7687.7998 2690.1599 30003.4902 6994.7598 22939.1797
2018-12-31 21792.1992 6584.7002 2351.1001 24585.5293 6192.9199 19155.7402 26828.3906 7877.5000 2930.7500 33154.1211 8109.6899 24270.6191
2019-12-31 22686.2207 6692.7002 2447.8899 25064.3594 6463.5000 19561.9609 28645.2598 7686.6001 3240.0200 30157.4902 9022.3896 24066.1191
2020-12-31 18591.9297 4993.8999 2237.3999 21696.1309 6860.6699 16552.8301 30606.4805 7674.6001 3756.0701 29056.4199 12899.4199 27568.1504
2021-12-31 29982.6191 6407.5000 3700.6499 22744.8594 12609.1602 27013.2500 36488.6289 7420.7002 4793.0601 31084.9395 16057.4404 30670.0996
2022-12-31 28725.5098 6826.2002 3577.0300 14687.0195 10213.2900 24717.5293 36799.6484 7672.3999 4796.5601 24965.5508 15832.7998 29332.1602
2023-12-31 31819.1406 7256.8999 3808.1001 16201.4902 10305.2402 25716.8594 37710.1016 8014.2998 4783.3501 22688.9004 15099.1797 33753.3281
2024-12-31 37266.6719 7446.2998 4688.6802 14961.1797 14510.2998 33288.2891 39131.5312 7728.5000 5137.0801 16790.8008 16274.9414 39910.8203
np.allclose(a, b)
True

3.2 Calulate the mean and standard deviation of returns by ticker for the MATANA (MSFT, AAPL, TSLA, AMZN, NVDA, and GOOG) stocks

Consider only dates with complete returns data. Try this calculation with wide and long data frames, and confirm your results are the same.

matana = (
    yf.download(tickers='MSFT AAPL TSLA AMZN NVDA GOOG')
    .rename_axis(columns=['Variable', 'Ticker'])
)
[*********************100%%**********************]  6 of 6 completed

We can add the returns columns first, using the pd.MultiIndex trick from a few weeks ago.

_ = pd.MultiIndex.from_product([['Return'], matana['Adj Close'].columns])
matana[_] = matana['Adj Close'].iloc[:-1].pct_change()
(
    matana['Return']
    .dropna()
    .describe()
    .loc[['mean', 'std']]
)
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
mean 0.0011 0.0012 0.0009 0.0010 0.0021 0.0020
std 0.0176 0.0207 0.0172 0.0163 0.0283 0.0358
a = (
    matana['Return']
    .dropna()
    .agg(['mean', 'std'])
)

a
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
mean 0.0011 0.0012 0.0009 0.0010 0.0021 0.0020
std 0.0176 0.0207 0.0172 0.0163 0.0283 0.0358

Here is the .pivot_table() solution!

b = (
    matana
    .dropna()
    .stack()
    .pivot_table(
        values='Return',
        index='Ticker',
        aggfunc=['mean', 'std']
    )
    .transpose()
)

b
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
Variable
mean Return 0.0011 0.0012 0.0009 0.0010 0.0021 0.0020
std Return 0.0176 0.0207 0.0172 0.0163 0.0283 0.0358
np.allclose(a, b)
True

What if we want to add skewness and kurtosis? There a skewness method built-in, but we have to write a lambda function for kurtosis.

(
    matana
    .dropna()
    .stack()
    .pivot_table(
        values='Return',
        index='Ticker',
        aggfunc=['mean', 'std', 'skew', lambda x: x.kurt()]
    )
    .rename(columns={'<lambda>': 'kurt'})
)
mean std skew kurt
Variable Return Return Return Return
Ticker
AAPL 0.0011 0.0176 -0.0679 5.3890
AMZN 0.0012 0.0207 0.3098 6.5446
GOOG 0.0009 0.0172 0.4022 8.5696
MSFT 0.0010 0.0163 0.0564 7.8516
NVDA 0.0021 0.0283 0.7116 9.1072
TSLA 0.0020 0.0358 0.3091 4.9438

Here is the .groupby() solution!

c = (
    matana
    .dropna()
    .stack()
    .groupby('Ticker')
    ['Return']
    .agg(['mean', 'std'])
    .transpose()
)

c
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
mean 0.0011 0.0012 0.0009 0.0010 0.0021 0.0020
std 0.0176 0.0207 0.0172 0.0163 0.0283 0.0358
np.allclose(a, c)
True

3.3 Calculate the mean and standard deviation of returns and the maximum of closing prices by ticker for the MATANA stocks

Again, consider only dates with complete returns data. Try this calculation with wide and long data frames, and confirm your results are the same.

a = (
    matana
    .dropna()
    .stack()
    .pivot_table(
        index='Ticker',
        aggfunc={'Return': ['mean', 'std'], 'Close': 'max'}
    )
)

a
Variable Close Return
max mean std
Ticker
AAPL 198.1100 0.0011 0.0176
AMZN 186.5705 0.0012 0.0207
GOOG 154.8400 0.0009 0.0172
MSFT 420.5500 0.0010 0.0163
NVDA 791.1200 0.0021 0.0283
TSLA 409.9700 0.0020 0.0358
b = (
    matana
    .dropna()
    .stack()
    .groupby('Ticker')
    .agg({'Return': ['mean', 'std'], 'Close':'max'})
)

b
Variable Return Close
mean std max
Ticker
AAPL 0.0011 0.0176 198.1100
AMZN 0.0012 0.0207 186.5705
GOOG 0.0009 0.0172 154.8400
MSFT 0.0010 0.0163 420.5500
NVDA 0.0021 0.0283 791.1200
TSLA 0.0020 0.0358 409.9700
np.allclose(a, b)
False

The .pivot_table() method sorts it columns, but groupby() method does not! We need to sort columns with .sort_index(axis=1) to make sure our output is the same!

np.allclose(
    a.sort_index(axis=1),
    b.sort_index(axis=1)
)
True

We can use the following code to display all index levels for all rows and columns.

with pd.option_context('display.multi_sparse', False):
    display(b)
Variable Return Return Close
mean std max
Ticker
AAPL 0.0011 0.0176 198.1100
AMZN 0.0012 0.0207 186.5705
GOOG 0.0009 0.0172 154.8400
MSFT 0.0010 0.0163 420.5500
NVDA 0.0021 0.0283 791.1200
TSLA 0.0020 0.0358 409.9700

If we prefer to see all index levels all the time, we can set the following setting at the top of our notebook:

pd.options.display.multi_sparse = False

We can also copy our output to our clipboaerd then paste it into Excel if we want to convince ourelves of the column multi index arrangement.

b.to_clipboard()

3.4 Calculate monthly means and volatilities for SPY and GOOG returns

spy_goog = (
    yf.download(tickers='SPY GOOG')
    .rename_axis(columns=['Variable', 'Ticker'])
)

spy_goog
[*********************100%%**********************]  2 of 2 completed
Variable Adj Close Close High Low Open Volume
Ticker GOOG SPY GOOG SPY GOOG SPY GOOG SPY GOOG SPY GOOG SPY
Date
1993-01-29 NaN 24.8407 NaN 43.9375 NaN 43.9688 NaN 43.7500 NaN 43.9688 NaN 1003200
1993-02-01 NaN 25.0174 NaN 44.2500 NaN 44.2500 NaN 43.9688 NaN 43.9688 NaN 480500
1993-02-02 NaN 25.0704 NaN 44.3438 NaN 44.3750 NaN 44.1250 NaN 44.2188 NaN 201300
1993-02-03 NaN 25.3354 NaN 44.8125 NaN 44.8438 NaN 44.3750 NaN 44.4062 NaN 529400
1993-02-04 NaN 25.4414 NaN 45.0000 NaN 45.0938 NaN 44.4688 NaN 44.9688 NaN 531500
... ... ... ... ... ... ... ... ... ... ... ... ...
2024-02-26 138.7500 505.9900 138.7500 505.9900 143.8400 508.7500 138.7400 505.8600 143.4500 508.3000 33513000.0000 50386700
2024-02-27 140.1000 506.9300 140.1000 506.9300 140.4900 507.1600 138.5000 504.7500 139.4100 506.7000 22364000.0000 48854500
2024-02-28 137.4300 506.2600 137.4300 506.2600 139.2800 506.8600 136.6400 504.9600 139.1000 505.3300 30628700.0000 56506600
2024-02-29 139.7800 508.0800 139.7800 508.0800 139.9500 509.7400 137.5700 505.3500 138.3500 508.0700 35485000.0000 83824300
2024-03-01 138.0800 512.8500 138.0800 512.8500 140.0000 513.2900 137.9750 508.5600 139.5000 508.9800 28445474.0000 76610613

7828 rows × 12 columns

spy_goog_m = (
    spy_goog['Adj Close'] # select adj close columns
    .iloc[:-1] # drop last row, with possible missing intraday prices
    .pct_change()
    .stack()
    .to_frame('Return')
    .reset_index()
    .groupby([pd.Grouper(key='Date', freq='M'), 'Ticker'])
    .agg(['mean', 'std'])
    .rename_axis(columns=['Variable', 'Statistic'])
)

spy_goog_m
Variable Return
Statistic mean std
Date Ticker
1993-02-28 SPY 0.0006 0.0080
1993-03-31 SPY 0.0010 0.0071
1993-04-30 SPY -0.0012 0.0074
1993-05-31 SPY 0.0014 0.0071
1993-06-30 SPY 0.0002 0.0060
... ... ... ...
2023-12-31 SPY 0.0023 0.0060
2024-01-31 GOOG 0.0005 0.0202
SPY 0.0008 0.0070
2024-02-29 GOOG -0.0006 0.0159
SPY 0.0026 0.0076

608 rows × 2 columns

3.5 Plot the monthly means and volatilities from the previous exercise

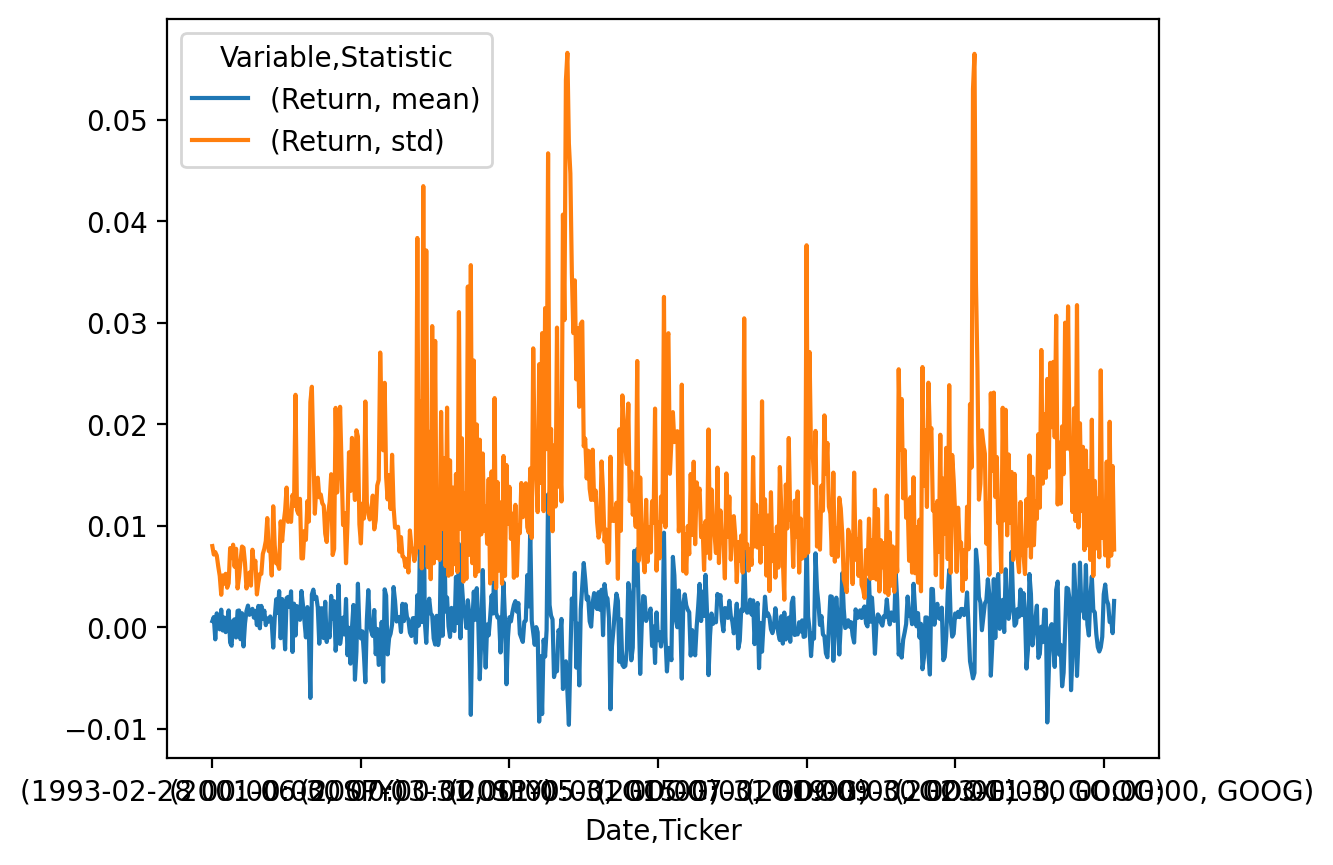

spy_goog_m.plot()

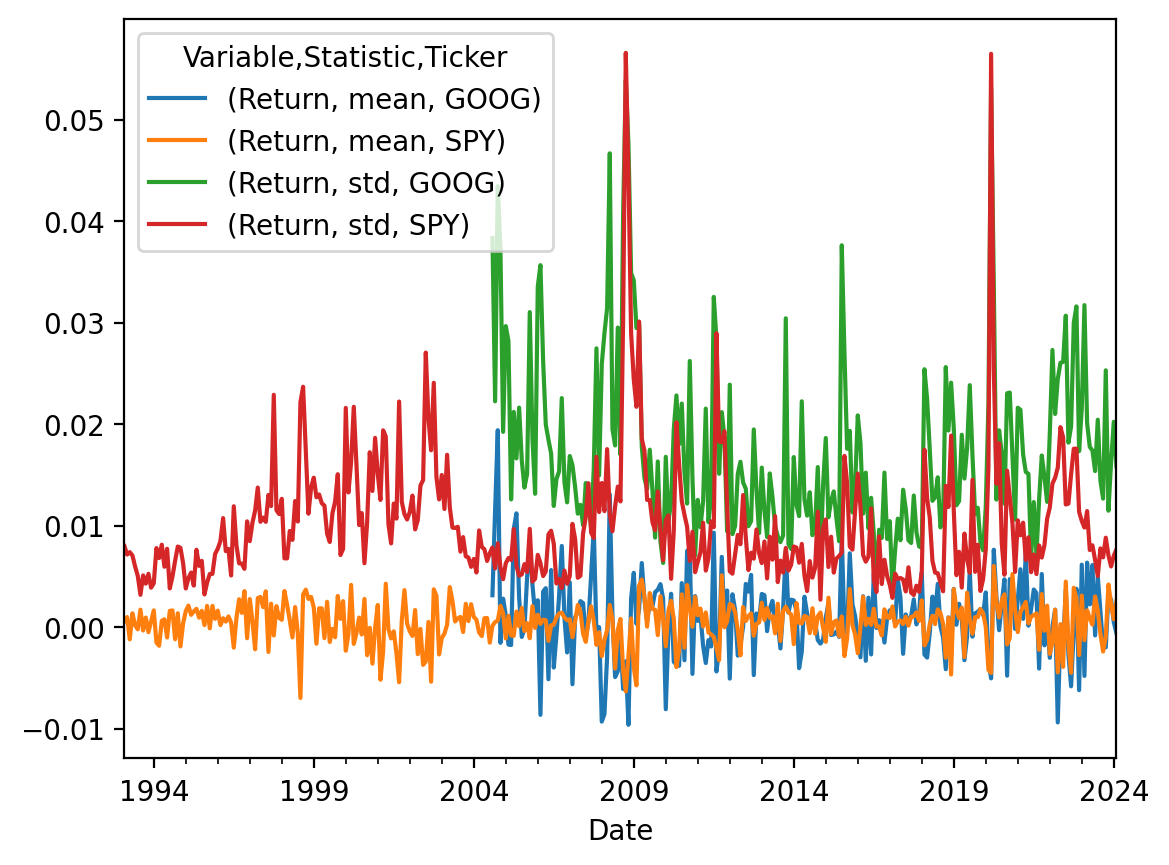

spy_goog_m.unstack().plot()

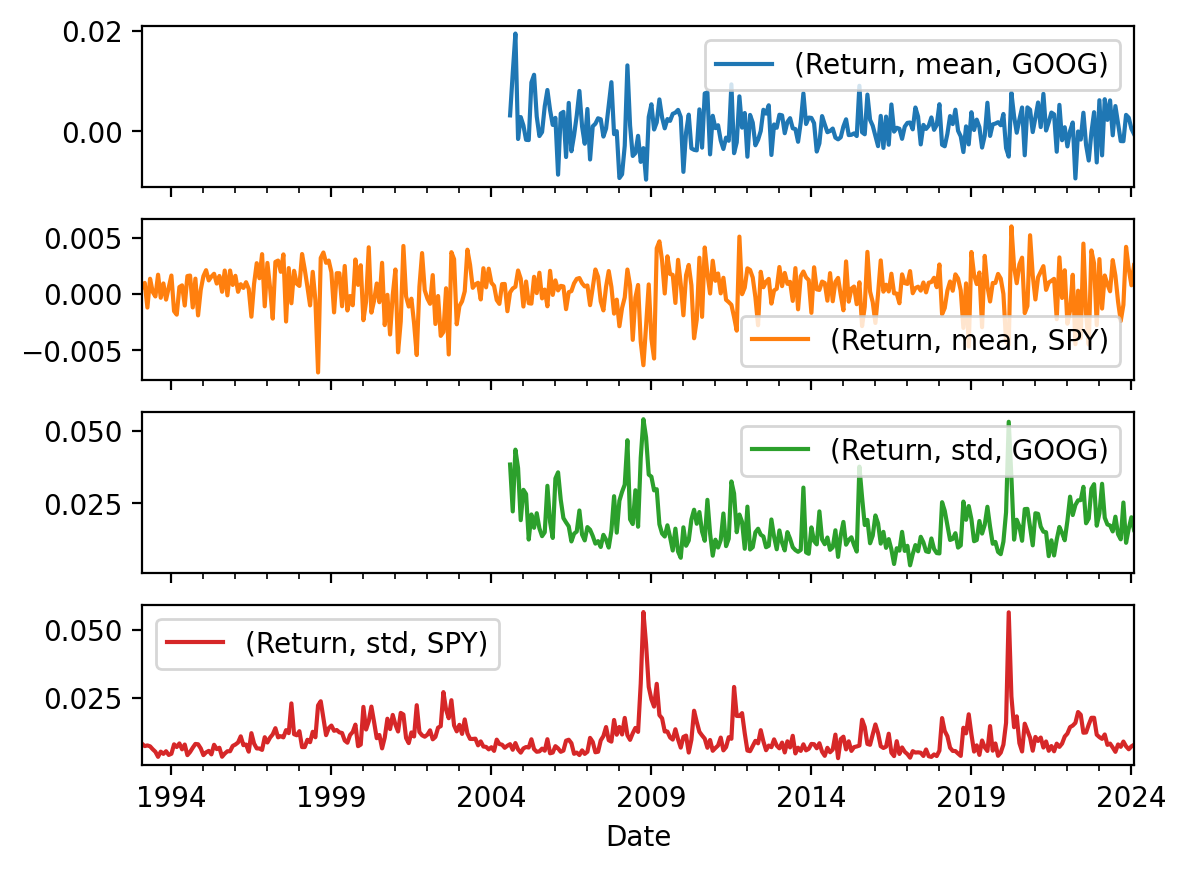

spy_goog_m.unstack().plot(subplots=True)
array([<Axes: xlabel='Date'>, <Axes: xlabel='Date'>,
       <Axes: xlabel='Date'>, <Axes: xlabel='Date'>], dtype=object)

import seaborn as sns

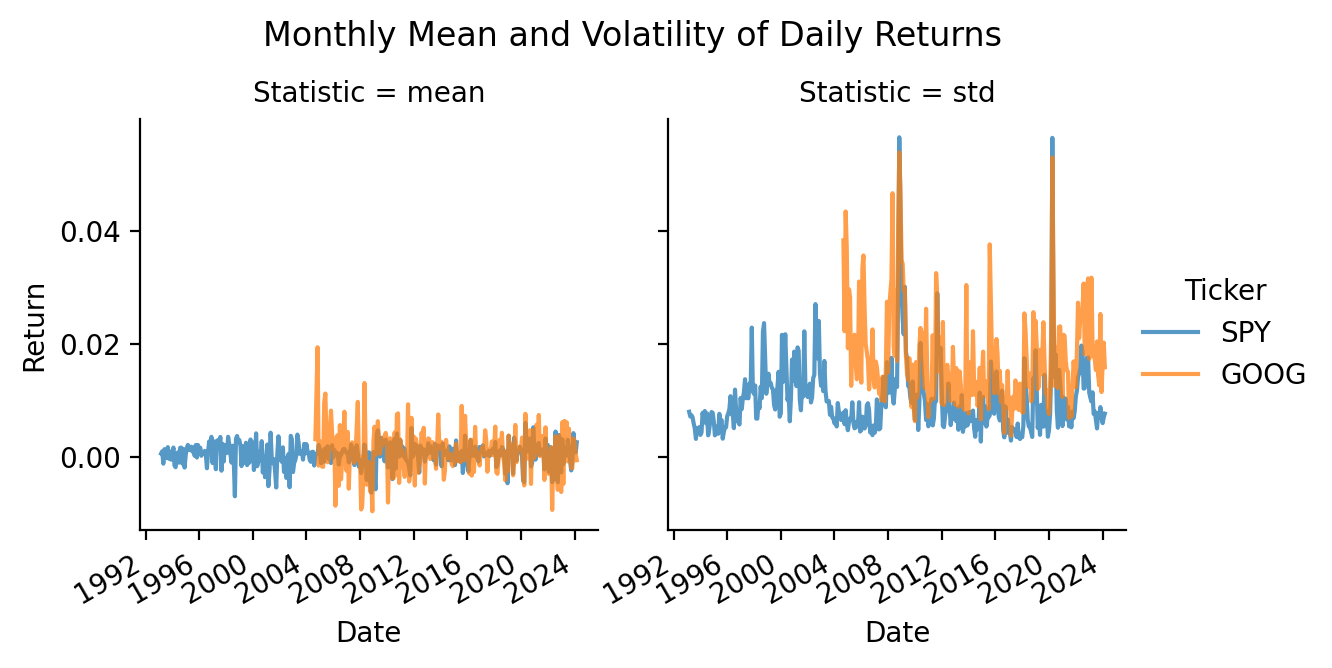

The seaborn makes excellent multi-panel plots, including plots with statistics. But, it requires very long data frames. A very long data frame has all of the y values in one column and all other useful dimensions as columns instead of indexes!

sns.relplot(
    data=spy_goog_m.stack().reset_index(),
    x='Date',
    y='Return',
    col='Statistic',
    hue='Ticker',
    height=3,
    kind='line',
    alpha=0.75
)

plt.gcf().autofmt_xdate()
plt.suptitle('Monthly Mean and Volatility of Daily Returns', y=1.05)
plt.show()

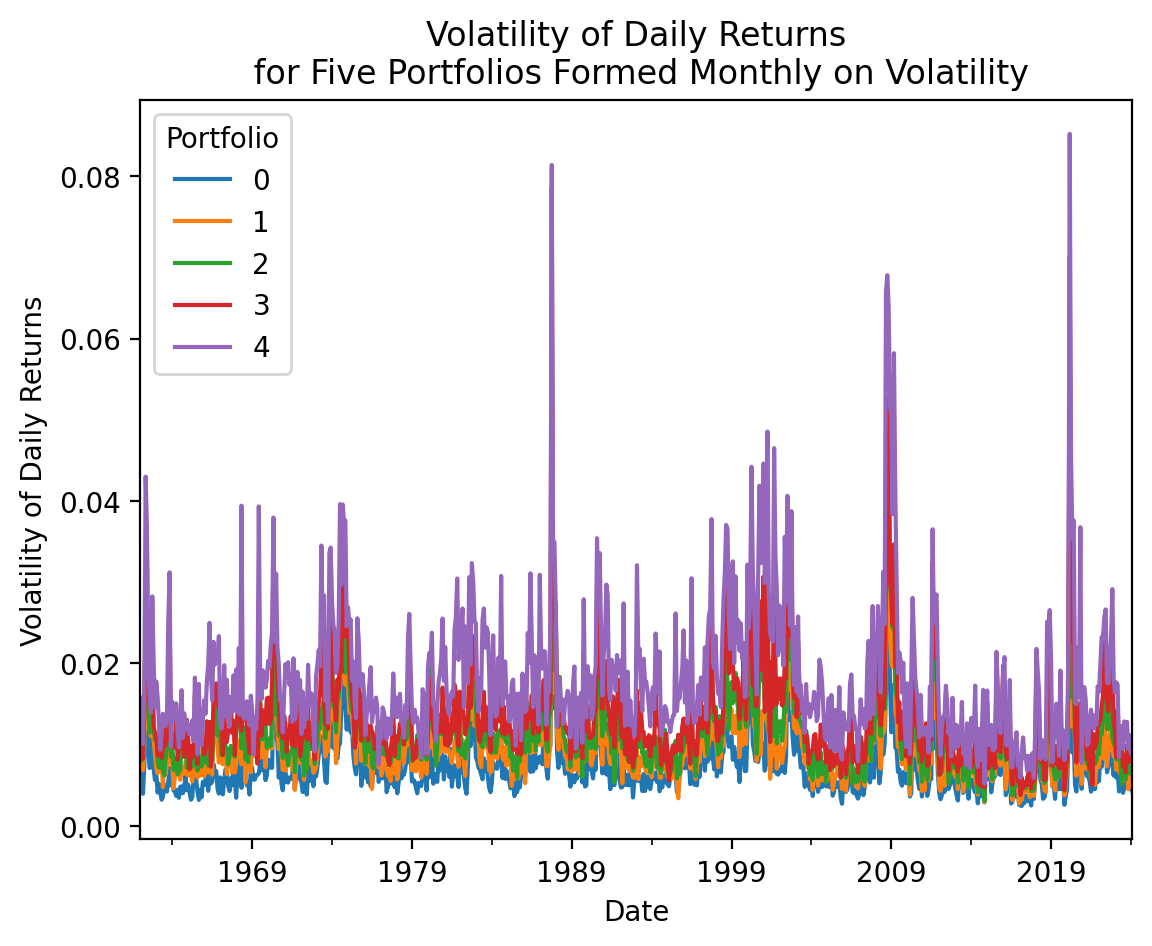

3.6 Assign the Dow Jones stocks to five portfolios based on their monthly volatility

wiki = pd.read_html('https://en.wikipedia.org/wiki/Dow_Jones_Industrial_Average')
wiki[1]['Symbol'].to_list()
['MMM',
 'AXP',
 'AMGN',
 'AMZN',
 'AAPL',
 'BA',
 'CAT',
 'CVX',
 'CSCO',
 'KO',
 'DIS',
 'DOW',
 'GS',
 'HD',
 'HON',
 'IBM',
 'INTC',
 'JNJ',
 'JPM',
 'MCD',
 'MRK',
 'MSFT',
 'NKE',
 'PG',
 'CRM',
 'TRV',
 'UNH',
 'VZ',
 'V',
 'WMT']
djia = (
    yf.download(tickers=wiki[1]['Symbol'].to_list())
    .rename_axis(columns=['Variable', 'Ticker'])
)

djia
[*********************100%%**********************]  30 of 30 completed
Variable Adj Close ... Volume
Ticker AAPL AMGN AMZN AXP BA CAT CRM CSCO CVX DIS ... MMM MRK MSFT NKE PG TRV UNH V VZ WMT
Date
1962-01-02 NaN NaN NaN NaN 0.1909 0.4767 NaN NaN 0.3358 0.0582 ... 212800 633830 NaN NaN 192000 NaN NaN NaN NaN NaN
1962-01-03 NaN NaN NaN NaN 0.1947 0.4813 NaN NaN 0.3350 0.0590 ... 422400 6564672 NaN NaN 428800 NaN NaN NaN NaN NaN
1962-01-04 NaN NaN NaN NaN 0.1928 0.4937 NaN NaN 0.3320 0.0590 ... 212800 1199750 NaN NaN 326400 NaN NaN NaN NaN NaN
1962-01-05 NaN NaN NaN NaN 0.1890 0.4983 NaN NaN 0.3236 0.0592 ... 315200 520646 NaN NaN 544000 NaN NaN NaN NaN NaN
1962-01-08 NaN NaN NaN NaN 0.1895 0.5014 NaN NaN 0.3221 0.0590 ... 334400 1380845 NaN NaN 1523200 NaN NaN NaN NaN NaN
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
2024-02-26 181.1600 286.3700 174.7300 216.9600 200.5400 325.3800 300.3900 48.4000 154.4500 107.6800 ... 3272900 5158400 16193500.0000 5831500.0000 4531900 1119800.0000 2308900.0000 3856900.0000 25108400.0000 32154800.0000
2024-02-27 182.6300 278.4900 173.5400 217.9800 201.4000 327.6300 299.5000 48.3100 152.1600 109.4200 ... 2288300 4780200 14835800.0000 5317400.0000 3868200 1245800.0000 3780600.0000 4145200.0000 17074100.0000 18012700.0000
2024-02-28 181.4200 277.4600 173.1600 218.0300 207.0000 329.5600 299.7700 48.0600 152.3400 110.8000 ... 2962400 5697200 13183100.0000 4219800.0000 3802900 965200.0000 9558600.0000 4358800.0000 12437000.0000 14803300.0000
2024-02-29 180.7500 273.8300 176.7600 219.4200 203.7200 333.9600 308.8200 48.3700 152.0100 111.5800 ... 5157700 11245800 31910700.0000 10810900.0000 8348100 1996600.0000 6832100.0000 6633700.0000 20485200.0000 29220100.0000
2024-03-01 179.6600 280.3300 178.2200 219.6600 200.0000 336.7000 316.8800 48.4000 152.8100 111.9500 ... 3395512 4210903 17596713.0000 6336704.0000 4816258 1110924.0000 7120380.0000 3955213.0000 9855322.0000 16384863.0000

15648 rows × 180 columns

First, we add daily returns to djia.

_ = pd.MultiIndex.from_product([['Return'], djia['Adj Close']])
djia[_] = djia['Adj Close'].iloc[:-1].pct_change()

Second, we add monthly volatility of daily returns to each day. The .transform() methods lets us add monthly volatility to the original daily data.

_ = pd.MultiIndex.from_product([['Volatility'], djia['Return']])
djia[_] = djia['Return'].groupby(pd.Grouper(freq='M')).transform('std')

Third, we use pd.qcut() to assign stocks to portfolios based on volatility. Here is an example of how to use pd.qcut().

np.arange(10)
array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9])
pd.qcut(
    x=np.arange(10),
    q=2,
    labels=False
)
array([0, 0, 0, 0, 0, 1, 1, 1, 1, 1], dtype=int64)

We use the .apply() with axis=1 to apply pd.qcut to every row in djia['Volatility'] without writing a for loop. We can also pass q=5 and labels=False after we give the pd.qcut function name.

_ = pd.MultiIndex.from_product([['Portfolio'], djia['Volatility']])
djia[_] = djia['Volatility'].iloc[:-1].apply(pd.qcut, q=5, labels=False, axis=1)

3.7 Plot the time-series volatilities of these five portfolios

djia.stack()
Variable Adj Close Close High Low Open Volume Return Volatility Portfolio
Date Ticker
1962-01-02 BA 0.1909 0.8230 0.8374 0.8230 0.8374 352350.0000 NaN 0.0156 3.0000
CAT 0.4767 1.6042 1.6198 1.5885 1.6042 163200.0000 NaN 0.0121 1.0000
CVX 0.3358 3.2961 3.2961 3.2440 0.0000 105840.0000 NaN 0.0108 0.0000
DIS 0.0582 0.0929 0.0960 0.0929 0.0929 841958.0000 NaN 0.0170 3.0000
HON 1.0740 8.3100 8.3287 8.2726 0.0000 40740.0000 NaN 0.0097 0.0000
... ... ... ... ... ... ... ... ... ... ...
2024-03-01 TRV 218.8200 218.8200 221.0850 218.3900 220.7600 1110924.0000 NaN NaN NaN
UNH 489.5300 489.5300 490.0200 477.2500 489.4200 7120380.0000 NaN NaN NaN
V 283.1600 283.1600 284.9100 282.1200 283.2000 3955213.0000 NaN NaN NaN
VZ 40.2000 40.2000 40.2900 39.7700 39.9900 9855322.0000 NaN NaN NaN
WMT 58.7600 58.7600 58.8500 58.2000 58.8000 16384863.0000 NaN NaN NaN

351387 rows × 9 columns

(
    djia
    .stack()
    .groupby(['Date', 'Portfolio'])
    ['Return']
    .mean()
    .reset_index()
    .dropna()
    .assign(Portfolio=lambda x: x['Portfolio'].astype(int))
    .groupby([pd.Grouper(key='Date', freq='M'), 'Portfolio'])
    .std()
    .rename(columns={'Return': 'Volatility'})
    .unstack()
    ['Volatility']
    .plot()
)

plt.ylabel('Volatility of Daily Returns')
plt.title('Volatility of Daily Returns\n for Five Portfolios Formed Monthly on Volatility')
plt.show()

3.8 Calculate the mean monthly correlation between the Dow Jones stocks

I may build Project 2 on this exercise, so I will leave it blank, for now.

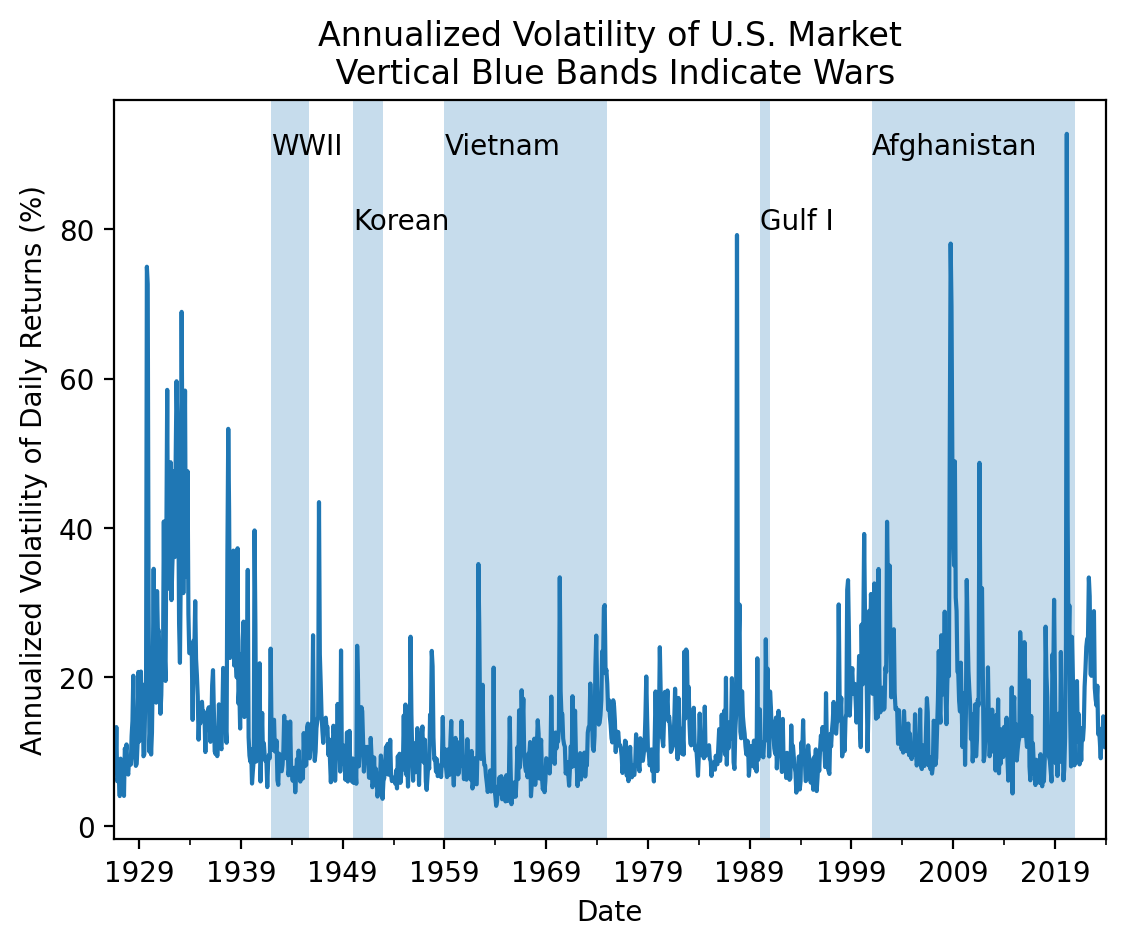

3.9 Is market volatility higher during wars?

Here is some guidance:

  1. Download the daily factor data from Ken French’s website
  2. Calculate daily market returns by summing the market risk premium and risk-free rates (Mkt-RF and RF, respectively)
  3. Calculate the volatility (standard deviation) of daily returns every month by combining pd.Grouper() and .groupby())
  4. Multiply by \(\sqrt{252}\) to annualize these volatilities of daily returns
  5. Plot these annualized volatilities

Is market volatility higher during wars? Consider the following dates:

  1. WWII: December 1941 to September 1945
  2. Korean War: 1950 to 1953
  3. Viet Nam War: 1959 to 1975
  4. Gulf War: 1990 to 1991
  5. War in Afghanistan: 2001 to 2021
pdr.famafrench.get_available_datasets()[:5]
['F-F_Research_Data_Factors',
 'F-F_Research_Data_Factors_weekly',
 'F-F_Research_Data_Factors_daily',
 'F-F_Research_Data_5_Factors_2x3',
 'F-F_Research_Data_5_Factors_2x3_daily']
ff_all = pdr.DataReader(
    name='F-F_Research_Data_Factors_daily',
    data_source='famafrench',
    start='1900'
)
C:\Users\r.herron\AppData\Local\Temp\ipykernel_20696\2526882917.py:1: FutureWarning: The argument 'date_parser' is deprecated and will be removed in a future version. Please use 'date_format' instead, or read your data in as 'object' dtype and then call 'to_datetime'.
  ff_all = pdr.DataReader(
(
    ff_all[0]
    .assign(Mkt = lambda x: x['Mkt-RF'] + x['RF'])
    ['Mkt']
    .groupby(pd.Grouper(freq='M'))
    .std()
    .mul(np.sqrt(252))
    .plot()
)

# adds vertical bands for U.S. wars
plt.axvspan('1941-12', '1945-09', alpha=0.25)
plt.annotate('WWII', ('1941-12', 90))
plt.axvspan('1950', '1953', alpha=0.25)
plt.annotate('Korean', ('1950', 80))
plt.axvspan('1959', '1975', alpha=0.25)
plt.annotate('Vietnam', ('1959', 90))
plt.axvspan('1990', '1991', alpha=0.25)
plt.annotate('Gulf I', ('1990', 80))
plt.axvspan('2001', '2021', alpha=0.25)
plt.annotate('Afghanistan', ('2001', 90))

plt.ylabel('Annualized Volatility of Daily Returns (%)')
plt.title('Annualized Volatility of U.S. Market\n Vertical Blue Bands Indicate Wars')
plt.show()
