McKinney Chapter 10 - Practice - Sec 02

FINA 6333 for Spring 2025

Author

Richard Herron

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pandas_datareader as pdr
import yfinance as yf
%precision 4
pd.options.display.float_format = '{:.4f}'.format
# %config InlineBackend.figure_format = 'retina'

Announcements

  1. Please join your project group today. Otherwise, I will randomly assign you to a group tonight.
  2. Please vote for students’ choice topics.
  3. Please complete a week-5 survey; see the announcement on Canvas.

Five-Minute Review

We will focus on 3 topics from chapter 10 of McKinney:

  1. GroupBy Mechanics: We will use the .groupby() method to perform “split-apply-combine” calculations in pandas, which let us aggregate data by one of more columns or indexes.
  2. Data Aggregation: We will combine optimized methods, like .count(), .sum(), .mean(), etc., with .groupby() to quickly aggregate data. We will combine the .agg() or .aggregate() method with .groupby() when we want to apply more than one aggregation function.
  3. Pivot Tables: We can use the .pivot_table() method to aggregate data with a syntax similar to Excel’s pivot tables. We can almost always get the same output with the .groupby(), .agg(), and .unstack() methods.

Practice

Replicate the following .pivot_table() output with .groupby()

ind = (
    yf.download(
        tickers='^GSPC ^DJI ^IXIC ^FTSE ^N225 ^HSI',
        auto_adjust=False,
        progress=False
    )
    .iloc[:-1]
    .stack(future_stack=True)
)
ind
Price Adj Close Close High Low Open Volume
Date Ticker
1927-12-30 ^DJI NaN NaN NaN NaN NaN NaN
^FTSE NaN NaN NaN NaN NaN NaN
^GSPC 17.6600 17.6600 17.6600 17.6600 17.6600 0.0000
^HSI NaN NaN NaN NaN NaN NaN
^IXIC NaN NaN NaN NaN NaN NaN
... ... ... ... ... ... ... ...
2025-02-27 ^FTSE 8756.2002 8756.2002 8768.0996 8680.5996 8731.5000 1169088400.0000
^GSPC 5861.5698 5861.5698 5993.6899 5858.7798 5981.8799 5057680000.0000
^HSI 23718.2891 23718.2891 24076.5293 23441.7402 23783.7500 6257000000.0000
^IXIC 18544.4199 18544.4199 19242.6895 18535.2207 19212.3594 7700290000.0000
^N225 38256.1719 38256.1719 38369.9609 38061.9414 38251.1094 121600000.0000

149418 rows × 6 columns

Tip

I learned after class that pd.Grouper() now has a level argument, too! We do not have to reset a data frame index just to use pd.Grouper()!

# Filter rows from 2015 onward
# Then pivot the 'ind' DataFrame so that:
#   - 'Close' values are aggregated
#   - Rows (index) are grouped yearly by 'Date' via pd.Grouper(...)
#   - Columns are broken out by 'Ticker'
#   - Both the 'min' and 'max' of 'Close' are calculated for each Ticker-year
# NOTE: pd.Grouper(level='Date', freq='YE') groups rows by the 'Date' index,
#       rolling them up to the 'Year-End' frequency.
a = (
    ind
    .loc['2015':]
    .pivot_table(
        values='Close',
        index=pd.Grouper(level='Date', freq='YE'),
        columns='Ticker',
        aggfunc=['min', 'max']
    )
)
a.head()
min max
Ticker ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225 ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225
Date
2015-12-31 15666.4404 5874.1001 1867.6100 20556.5996 4506.4902 16795.9609 18312.3906 7104.0000 2130.8201 28442.7500 5218.8599 20868.0293
2016-12-31 15660.1797 5537.0000 1829.0800 18319.5801 4266.8398 14952.0195 19974.6191 7142.7998 2271.7200 24099.6992 5487.4399 19494.5293
2017-12-31 19732.4004 7099.2002 2257.8301 22134.4707 5429.0801 18335.6309 24837.5098 7687.7998 2690.1599 30003.4902 6994.7598 22939.1797
2018-12-31 21792.1992 6584.7002 2351.1001 24585.5293 6192.9199 19155.7402 26828.3906 7877.5000 2930.7500 33154.1211 8109.6899 24270.6191
2019-12-31 22686.2207 6692.7002 2447.8899 25064.3594 6463.5000 19561.9609 28645.2598 7686.6001 3240.0200 30157.4902 9022.3896 24066.1191
# Filter rows from 2015 onward.
# Group by both:
#    1) Year-end frequency of the 'Date' index (pd.Grouper(level='Date', freq='YE')), and
#    2) 'Ticker'.
# Then select the 'Close' column from each group and aggregate by taking
# the 'min' and 'max'. Finally, use .unstack() to move 'Ticker' back to columns.
b = (
    ind
    .loc['2015':]
    .groupby([pd.Grouper(level='Date', freq='YE'), 'Ticker'])
    ['Close']
    .agg(['min', 'max'])
    .unstack()
)
b.head()
min max
Ticker ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225 ^DJI ^FTSE ^GSPC ^HSI ^IXIC ^N225
Date
2015-12-31 15666.4404 5874.1001 1867.6100 20556.5996 4506.4902 16795.9609 18312.3906 7104.0000 2130.8201 28442.7500 5218.8599 20868.0293
2016-12-31 15660.1797 5537.0000 1829.0800 18319.5801 4266.8398 14952.0195 19974.6191 7142.7998 2271.7200 24099.6992 5487.4399 19494.5293
2017-12-31 19732.4004 7099.2002 2257.8301 22134.4707 5429.0801 18335.6309 24837.5098 7687.7998 2690.1599 30003.4902 6994.7598 22939.1797
2018-12-31 21792.1992 6584.7002 2351.1001 24585.5293 6192.9199 19155.7402 26828.3906 7877.5000 2930.7500 33154.1211 8109.6899 24270.6191
2019-12-31 22686.2207 6692.7002 2447.8899 25064.3594 6463.5000 19561.9609 28645.2598 7686.6001 3240.0200 30157.4902 9022.3896 24066.1191
a.equals(b)
True
np.allclose(a, b)
True
(a == b).all().all()
np.True_

Calulate the mean and standard deviation of returns by ticker for the MATANA (MSFT, AAPL, TSLA, AMZN, NVDA, and GOOG) stocks

Consider only dates with complete returns data. Try this calculation with wide and long data frames, and confirm your results are the same.

matana = (
    yf.download(
        tickers='MSFT AAPL TSLA AMZN NVDA GOOG',
        auto_adjust=False,
        progress=False
    )
    .iloc[:-1]
)
columns = pd.MultiIndex.from_product([['Return'], matana['Adj Close'].columns])
matana[columns] = matana['Adj Close'].pct_change()
matana['Return'].dropna().agg(['mean', 'std'])
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
mean 0.0011 0.0012 0.0009 0.0010 0.0021 0.0021
std 0.0175 0.0205 0.0173 0.0161 0.0288 0.0362

Homework! Re-do this aggregation with annualized* means and volatilities!*

We have (at least) two options here.

  1. Write functions that calculate annualized means and volatilities, say ann_mean() and ann_std()
  2. Use lambda (anonymous functions), then rename the rows

First, here is the “write functions” solution. We do not need to provide userr-written function names in quotes.

def ann_mean(x, ann_fac=252):
    return ann_fac * x.mean()
def ann_std(x, ann_fac=np.sqrt(252)):
    return ann_fac * x.std()
a = matana['Return'].agg([ann_mean, ann_std])
a
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
ann_mean 0.2748 0.4294 0.2528 0.2816 0.4888 0.5175
ann_std 0.4406 0.5583 0.3061 0.3336 0.6004 0.5740

Second, here is the “lambda functions” solution.

b = matana['Return'].agg([lambda x: 252*x.mean(), lambda x: np.sqrt(252)*x.std()])
b.index = ['Mean', 'Volatility']
b
Ticker AAPL AMZN GOOG MSFT NVDA TSLA
Mean 0.2748 0.4294 0.2528 0.2816 0.4888 0.5175
Volatility 0.4406 0.5583 0.3061 0.3336 0.6004 0.5740
np.allclose(a=a, b=b)
True

(These values differ just enough that we have to complete the fuzzy equality of np.allclose() instead of the exact equality of .equals().)

Calculate the mean and standard deviation of returns and the maximum of closing prices by ticker for the MATANA stocks

We have to reshape our data first, because the .agg() method does not work well with column multi-indexes. The .rename_axis() method is optional, but I prefer to name my axes to simplify later stacking and unstacking.

a = (
    matana
    .stack(future_stack=True)
    .groupby(level='Ticker')
    .agg({
        'Return': ['mean', 'std'],
        'Close': 'max'
    })
    .rename_axis(columns=['Variable', 'Statistic'])
)
a
Variable Return Close
Statistic mean std max
Ticker
AAPL 0.0011 0.0278 259.0200
AMZN 0.0017 0.0352 242.0600
GOOG 0.0010 0.0193 207.7100
MSFT 0.0011 0.0210 467.5600
NVDA 0.0019 0.0378 149.4300
TSLA 0.0021 0.0362 479.8600

We can do the same operation with .pivot_table().

b = (
    matana
    .stack(future_stack=True)
    .pivot_table(
        index='Ticker',
        aggfunc={
        'Return': ['mean', 'std'],
        'Close': 'max'
    }
))
b
Price Close Return
max mean std
Ticker
AAPL 259.0200 0.0011 0.0278
AMZN 242.0600 0.0017 0.0352
GOOG 207.7100 0.0010 0.0193
MSFT 467.5600 0.0011 0.0210
NVDA 149.4300 0.0019 0.0378
TSLA 479.8600 0.0021 0.0362

The column orders differ between .agg() and .pivot_table() solutions, but the values are the same.

a[['Close', 'Return']].equals(b[['Close', 'Return']])
True

Calculate monthly means and volatilities for SPY and GOOG returns

spy_goog = (
    yf.download(
        tickers='SPY GOOG',
        auto_adjust=False,
        progress=False
    )
    .iloc[:-1]
)

spy_goog
Price Adj Close Close High Low Open Volume
Ticker GOOG SPY GOOG SPY GOOG SPY GOOG SPY GOOG SPY GOOG SPY
Date
1993-01-29 NaN 24.5261 NaN 43.9375 NaN 43.9688 NaN 43.7500 NaN 43.9688 NaN 1003200
1993-02-01 NaN 24.7005 NaN 44.2500 NaN 44.2500 NaN 43.9688 NaN 43.9688 NaN 480500
1993-02-02 NaN 24.7529 NaN 44.3438 NaN 44.3750 NaN 44.1250 NaN 44.2188 NaN 201300
1993-02-03 NaN 25.0145 NaN 44.8125 NaN 44.8438 NaN 44.3750 NaN 44.4062 NaN 529400
1993-02-04 NaN 25.1192 NaN 45.0000 NaN 45.0938 NaN 44.4688 NaN 44.9688 NaN 531500
... ... ... ... ... ... ... ... ... ... ... ... ...
2025-02-21 181.5800 599.9400 181.5800 599.9400 187.4700 610.3000 181.1300 599.4700 187.2900 610.1600 19520800.0000 76519800
2025-02-24 181.1900 597.2100 181.1900 597.2100 185.0900 603.0300 180.8800 596.4900 183.8000 602.0200 18734000.0000 50737200
2025-02-25 177.3700 594.2400 177.3700 594.2400 180.7600 597.8900 176.7700 589.5600 180.1550 597.1500 20832500.0000 58266500
2025-02-26 174.7000 594.5400 174.7000 594.5400 178.0800 599.5800 173.5900 591.8600 176.9450 595.9300 23637200.0000 43321600
2025-02-27 170.2100 585.0500 170.2100 585.0500 176.5900 598.0200 169.7520 584.6500 175.9400 596.8500 25930500.0000 74196700

8076 rows × 12 columns

spy_goog_m = (
    spy_goog
    ['Adj Close']
    .pct_change()
    .groupby(pd.Grouper(level='Date', freq='ME'))
    .agg(['mean', 'std'])
    .dropna(how='all')
    .rename_axis(columns=['Ticker', 'Statistic'])
)

spy_goog_m
Ticker GOOG SPY
Statistic mean std mean std
Date
1993-02-28 NaN NaN 0.0006 0.0080
1993-03-31 NaN NaN 0.0010 0.0071
1993-04-30 NaN NaN -0.0012 0.0074
1993-05-31 NaN NaN 0.0014 0.0071
1993-06-30 NaN NaN 0.0002 0.0060
... ... ... ... ...
2024-10-31 0.0015 0.0126 -0.0004 0.0070
2024-11-30 -0.0005 0.0191 0.0029 0.0075
2024-12-31 0.0056 0.0223 -0.0011 0.0090
2025-01-31 0.0040 0.0167 0.0014 0.0088
2025-02-28 -0.0102 0.0207 -0.0015 0.0075

385 rows × 4 columns

Plot the monthly means and volatilities from the previous exercise

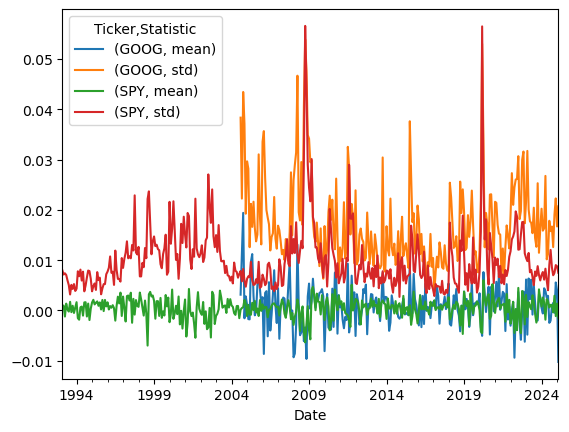

Let us try .plot() first!

spy_goog_m.plot()

This plot is not very useful because:

  1. Mean and volatility are on the same y axis
  2. The legend title and labels are cluttered

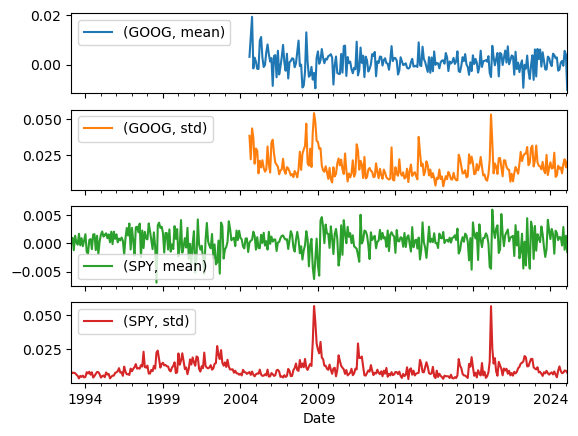

Let use try the subplots=True argument to .plot().

spy_goog_m.plot(subplots=True)
array([<Axes: xlabel='Date'>, <Axes: xlabel='Date'>,
       <Axes: xlabel='Date'>, <Axes: xlabel='Date'>], dtype=object)

This plot is slightly better, but once I need a more complex plot with different statistics and different individuals, I switch to seaborn. seaborn is a plotting package built on top of matplotlib and does an excellent job with different statistics and different individuals. The following example uses sns.replot() to plot these four series. seaborn works best with all y values in one column, which we might call and really long data frame, and columns instead of indexes. Please see my comments on the code below.

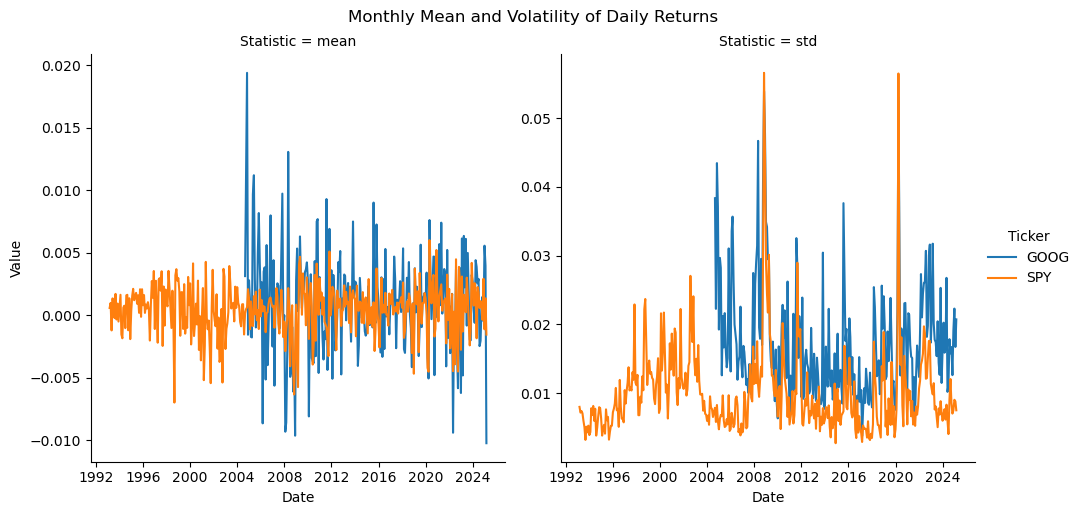

import seaborn as sns
(
    # Start with the 'spy_goog_m' DataFrame that contains monthly volatility and returns for SPY and GOOG
    spy_goog_m
    # Stack the DataFrame once; by default stack will pivot the inner column index into the row index
    .stack(future_stack=True)
    # Stack a second time to fully pivot all remaining columns into the index
    .stack(future_stack=True)
    # Convert the stacked Series into a DataFrame and name the single value column as 'Value'
    .to_frame('Value')
    # Reset the multi-level index so that 'Date', 'Ticker', and 'Statistic' become columns
    .reset_index()
    # Use .pipe() to pass the resulting DataFrame directly into sns.relplot with the following arguments
    .pipe(
        sns.relplot,
        x='Date',          # The x-axis will be the 'Date' column
        y='Value',         # The y-axis will be the 'Value' column (volatility or returns)
        hue='Ticker',      # Different lines/colors for each ticker (SPY vs GOOG)
        col='Statistic',   # Create separate plots (facets) for each statistic (volatility or returns)
        kind='line',       # Plot a line chart
        facet_kws={'sharey': False}  # Allow each facet to have its own y-scale instead of sharing a single scale
    )
)

plt.suptitle('Monthly Mean and Volatility of Daily Returns', y=1.02)
plt.show()

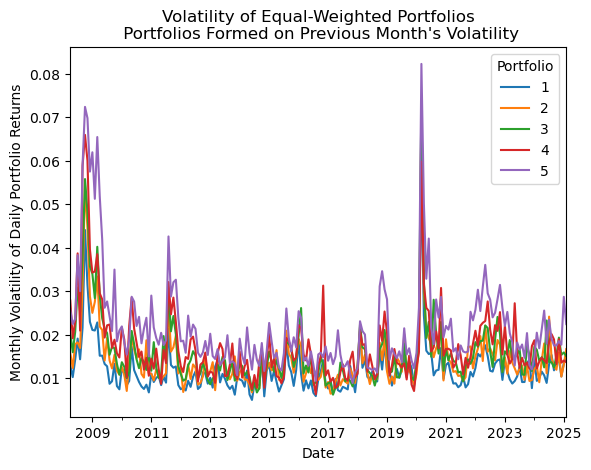

Assign the Dow Jones stocks to five portfolios based on the preceding month’s volatility

This example may make more sense after we cover chapter 11 on time-series tools. I recently added “preceding” to this example to prevent any look-ahead bias, but it makes this example more challenging.

First, we download DJIA data from Yahoo! Finance using the current DJIA tickers from Wikipedia.

wiki = pd.read_html('https://en.wikipedia.org/wiki/Dow_Jones_Industrial_Average')
djia = (
    yf.download(
        tickers=wiki[2]['Symbol'].to_list(),
        auto_adjust=False,
        progress=False
    )
    .iloc[:-1]
)

Next, we will calculate daily returns for djia. We have to use our pd.MultiIndex.from_product() trick to create a multi-index for the columns.

Tip

pd.MultiIndex.from_product() takes a list of iterables (e.g., lists or arrays) and creates all possible combinations of their elements. This combination is called a Cartesian product. Each unique combination becomes a distinct entry in the resulting multi index.

columns = pd.MultiIndex.from_product([['Return'], djia['Adj Close'].columns])
djia[columns] = djia['Adj Close'].pct_change()

Next, we calculate monthly volatility of daily returns, then assign stocks to portfolios based on these volatilities. We will keep these portfolio assignment separate from djia, for now. We use the .apply() method with axis=1 to apply pd.qcut to every row/month in without writing a for loop. We can also pass q=5 and labels=False after we give the pd.qcut function name. Here is a simple pd.qcut() example.

np.arange(10)
array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9])
pd.qcut(
    x=np.arange(10),
    q=5,
    labels=False
)
array([0, 0, 1, 1, 2, 2, 3, 3, 4, 4])
djia_portfolios = (
    djia
    ['Return']                      # Start with 'Return' data
    .dropna()                       # Drop rows with missing values
    .groupby(pd.Grouper(level='Date', freq='ME'))  # Group by month-end
    .std()                          # Compute std dev within each group
    .apply(pd.qcut, q=5, labels=False, axis=1)  # Bin into 5 quantiles
)
columns = pd.MultiIndex.from_product([['Portfolio'], djia['Return'].columns])
djia_portfolios.columns = columns

djia_portfolios.head()
Portfolio
Ticker AAPL AMGN AMZN AXP BA CAT CRM CSCO CVX DIS ... MSFT NKE NVDA PG SHW TRV UNH V VZ WMT
Date
2008-03-31 3 1 3 4 2 0 3 3 0 1 ... 2 4 3 0 2 1 2 4 2 2
2008-04-30 3 1 4 3 2 3 4 2 0 1 ... 3 1 4 0 2 2 4 3 1 0
2008-05-31 3 1 4 4 2 0 4 3 1 2 ... 2 2 4 0 3 2 3 4 2 1
2008-06-30 3 0 4 4 3 0 4 1 1 1 ... 2 4 3 0 2 2 2 3 2 1
2008-07-31 2 3 4 4 2 2 2 1 1 1 ... 2 1 4 0 4 3 3 4 0 1

5 rows × 30 columns

Combining the returns and portfolios is the trickiest step because we want to prevent a look-ahead bias. For example, we do not know that AAPL is in portfolio 3 until March 2008 ends. Therefore, AAPL cannot be in portfolio 3 until April 2008!

djia_w_portfolios = djia.join(djia_portfolios.shift(periods=1, freq='D'))
djia_w_portfolios['Portfolio'] = djia_w_portfolios['Portfolio'].ffill()

Plot the time-series volatilities of these five portfolios

(
    djia_w_portfolios                  # start data frame with portfolio assignments
    .stack(future_stack=True)          # Reshape columns into rows
    .dropna()                          # Remove rows with missing values
    .groupby([pd.Grouper(level='Date', freq='ME'), 'Portfolio'])  # Group by month-end & portfolio
    ['Return']                         # Operate on 'Return'
    .std()                             # Calculate std dev for each group
    .to_frame('Volatility')            # Convert to DataFrame named 'Volatility'
    .reset_index()                     # Make grouped cols into normal columns to fix portfolio colums
    .assign(Portfolio=lambda x: x['Portfolio'].astype(int) + 1)  # Convert portfolio to int & increment
    .set_index(['Date', 'Portfolio'])  # Use 'Date' & 'Portfolio' as new index
    .unstack()['Volatility']           # Reshape wide, focusing on 'Volatility'
    .plot()                            # Generate the plot
)

plt.title('Volatility of Equal-Weighted Portfolios\n Portfolios Formed on Previous Month\'s Volatility')
plt.ylabel('Monthly Volatility of Daily Portfolio Returns')
plt.show()

Calculate the mean monthly correlation between the Dow Jones stocks

We will keep any day with at least 20 stocks. 20 is an arbitrary threshold but provides a 40+ year sample. The thresh=20 argument to the .dropna() method drops any row with fewer than 20 non-missing values.

djia['Return'].dropna(thresh=20).count(axis=1)
Date
1981-09-23    20
1981-09-24    20
1981-09-25    20
1981-09-28    20
1981-09-29    20
              ..
2025-02-21    30
2025-02-24    30
2025-02-25    30
2025-02-26    30
2025-02-27    30
Length: 10947, dtype: int64

Then we can use the axis=1 argument to the .dropna() to drop any stocks without data.

djia['Return'].dropna(thresh=20).dropna(axis=1).count()
Ticker
AAPL    10947
AXP     10947
BA      10947
CAT     10947
CVX     10947
DIS     10947
HD      10947
HON     10947
IBM     10947
JNJ     10947
JPM     10947
KO      10947
MCD     10947
MMM     10947
MRK     10947
NKE     10947
PG      10947
SHW     10947
TRV     10947
WMT     10947
dtype: int64

Next, we calculate the pairwise correlations between every stock every month.

(
    djia['Return']
    .dropna(thresh=20)
    .dropna(axis=1)
    .groupby(pd.Grouper(level='Date', freq='ME'))
    .corr()
)
Ticker AAPL AXP BA CAT CVX DIS HD HON IBM JNJ JPM KO MCD MMM MRK NKE PG SHW TRV WMT
Date Ticker
1981-09-30 AAPL 1.0000 0.6520 0.4549 0.5633 0.2316 0.8654 NaN 0.2991 0.1691 -0.0722 -0.0441 0.8272 0.3542 0.5247 0.6756 0.8195 0.7045 0.7338 0.6740 0.8170
AXP 0.6520 1.0000 0.8350 0.7388 0.4941 0.6656 NaN 0.7529 0.4243 0.6275 -0.5158 0.8953 0.8154 0.6453 0.8543 0.2044 0.9348 0.8512 0.0686 0.5737
BA 0.4549 0.8350 1.0000 0.5696 0.8357 0.6053 NaN 0.9685 0.7334 0.7441 -0.5713 0.6188 0.9314 0.4350 0.9594 0.0042 0.7765 0.8539 0.0740 0.1810
CAT 0.5633 0.7388 0.5696 1.0000 0.0854 0.2722 NaN 0.6127 0.6238 0.1519 -0.5053 0.8419 0.3351 0.0391 0.5817 0.4290 0.5807 0.8574 -0.1149 0.4429
CVX 0.2316 0.4941 0.8357 0.0854 1.0000 0.5229 NaN 0.7683 0.5997 0.7313 -0.5092 0.1715 0.8648 0.3567 0.8018 -0.2338 0.4587 0.5080 0.1337 -0.1611
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
2025-02-28 NKE 0.3162 0.0004 0.0482 0.0244 0.2118 0.1206 0.1274 0.6006 0.3535 0.2012 -0.2302 -0.0567 0.0871 0.1481 0.1327 1.0000 0.1820 -0.0391 0.1860 0.0821
PG -0.1369 -0.3545 0.0515 -0.2272 -0.1965 -0.2196 0.0334 0.2961 0.0140 0.4862 -0.0485 0.4350 0.1009 -0.2339 0.3593 0.1820 1.0000 0.1759 0.4297 0.1360
SHW -0.0145 0.4445 -0.0237 0.4848 -0.1259 0.0197 0.7095 0.0105 -0.0923 0.1010 0.1241 0.0544 -0.0392 0.3584 -0.1950 -0.0391 0.1759 1.0000 0.2488 0.4282
TRV 0.0950 0.0765 0.4173 0.2083 0.0119 0.2739 0.2077 0.0778 -0.1450 0.4844 0.0087 -0.0008 0.1697 0.4362 0.3460 0.1860 0.4297 0.2488 1.0000 0.2788
WMT 0.0765 0.2785 0.5015 0.2344 -0.0594 -0.0354 0.4986 0.0966 -0.0319 0.0655 0.4388 0.1360 0.2373 0.3700 -0.3174 0.0821 0.1360 0.4282 0.2788 1.0000

10440 rows × 20 columns

The hard part is to drop the duplicate and self correlations. The ssimplest solution is to .stack() this data frame, then only keep observations where the first tickers is alphabetically before the second ticker.

# Calculate correlations for each month-end, then reshape into a long format
djia_correlations = (
    djia['Return']                               # Start with daily returns
    .dropna(thresh=20)                           # Keep rows with at least 20 non-NA tickers
    .dropna(axis=1)                              # Drop any tickers that still have missing values
    .groupby(pd.Grouper(level='Date', freq='ME'))  # Group by end of each month
    .corr()                                      # Calculate correlation matrix for each month
    .stack()                                     # Convert from wide to long format
    .to_frame('Correlation')                     # Name the single column 'Correlation'
)

# Rename index levels for clarity
djia_correlations.index.names = ['Date', 'Ticker1', 'Ticker2']

# Compute mean monthly correlation, excluding the first/last partial months
mean_monthly_corr = (
    djia_correlations
    .iloc[1:-1]                 # Drop the first and last rows (partial months)
    .query('Ticker1 < Ticker2') # Keep only the upper triangle pairs
    .groupby('Date')            # Group by month
    .mean()                     # Average correlation across all ticker pairs
)

# Plot the mean correlation across time
mean_monthly_corr.plot(legend=False)
plt.ylabel('Mean Monthly Correlation of Daily Returns')

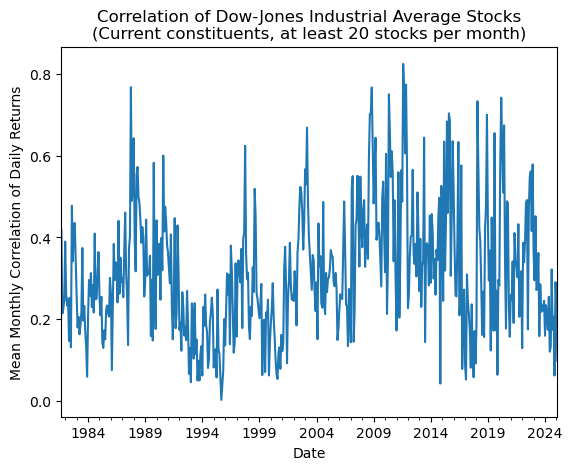

plt.title('Correlation of Dow-Jones Industrial Average Stocks\n(Current constituents, at least 20 stocks per month)')
plt.show()

Is market volatility higher during wars?

Here is some guidance:

  1. Download the daily factor data from Ken French’s website
  2. Calculate daily market returns by summing the market risk premium and risk-free rates (Mkt-RF and RF, respectively)
  3. Calculate the volatility (standard deviation) of daily returns every month by combining pd.Grouper() and .groupby())
  4. Multiply by \(\sqrt{252}\) to annualize these volatilities of daily returns
  5. Plot these annualized volatilities

Is market volatility higher during wars? Consider the following dates:

  1. WWII: December 1941 to September 1945
  2. Korean War: 1950 to 1953
  3. Viet Nam War: 1959 to 1975
  4. Gulf War: 1990 to 1991
  5. War in Afghanistan: 2001 to 2021
pdr.famafrench.get_available_datasets()[:5]
['F-F_Research_Data_Factors',
 'F-F_Research_Data_Factors_weekly',
 'F-F_Research_Data_Factors_daily',
 'F-F_Research_Data_5_Factors_2x3',
 'F-F_Research_Data_5_Factors_2x3_daily']
ff = pdr.DataReader(
    name='F-F_Research_Data_Factors_daily',
    data_source='famafrench',
    start='1900'
)
C:\Users\r.herron\AppData\Local\Temp\ipykernel_496\875599436.py:1: FutureWarning: The argument 'date_parser' is deprecated and will be removed in a future version. Please use 'date_format' instead, or read your data in as 'object' dtype and then call 'to_datetime'.
  ff = pdr.DataReader(
# Calculate and plot the annualized daily volatility of the U.S. market
(
    ff[0]
    .assign(Mkt=lambda df: df['Mkt-RF'] + df['RF'])  # Create 'Mkt' by adding market excess return + risk-free rate
    ['Mkt']                                        # Select only the 'Mkt' column
    .groupby(pd.Grouper(freq='ME'))                # Group by month-end
    .std()                                         # Compute standard deviation within each month
    .mul(np.sqrt(252))                             # Convert to annualized volatility (approx 252 trading days/yr)
    .plot()                                        # Plot the resulting monthly series
)

# Add vertical spans (blue bands) for U.S. wars, with annotation labels
plt.axvspan('1941-12', '1945-09', alpha=0.25)
plt.annotate('WWII', ('1941-12', 90))

plt.axvspan('1950', '1953', alpha=0.25)
plt.annotate('Korean', ('1950', 80))

plt.axvspan('1959', '1975', alpha=0.25)
plt.annotate('Vietnam', ('1959', 90))

plt.axvspan('1990', '1991', alpha=0.25)
plt.annotate('Gulf I', ('1990', 80))

plt.axvspan('2001', '2021', alpha=0.25)
plt.annotate('Afghanistan', ('2001', 90))

# Customize labels and title
plt.ylabel('Annualized Volatility of Daily Returns (%)')

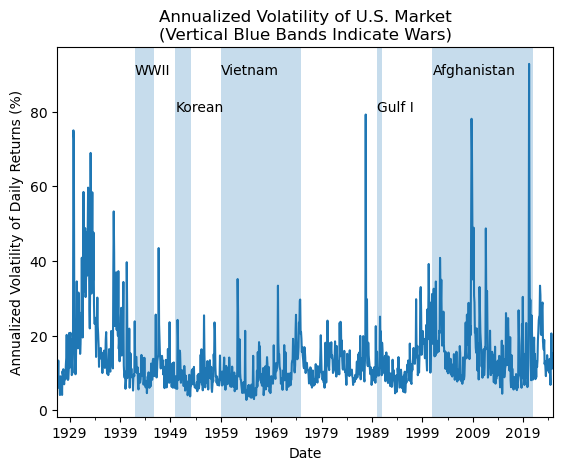

plt.title('Annualized Volatility of U.S. Market\n(Vertical Blue Bands Indicate Wars)')
plt.show()
